Components, HiFi system, rear for BMW MINI F56 JCW (2021)

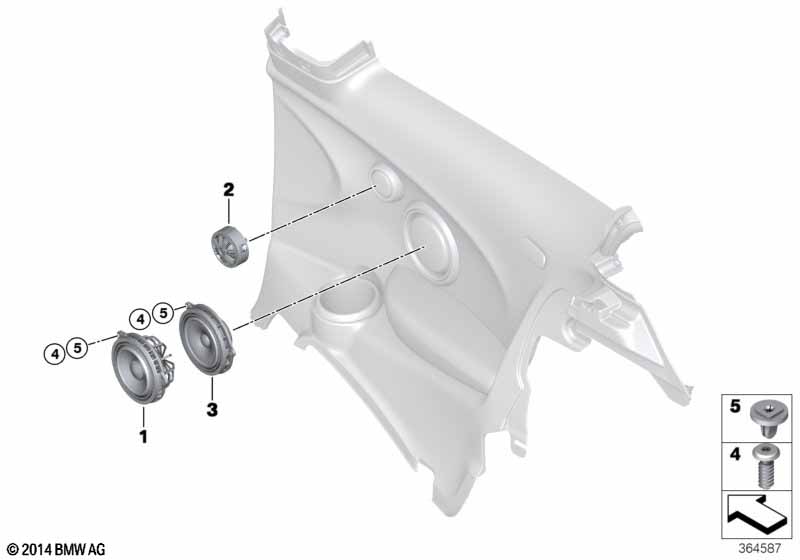

This Components, HiFi system, rear technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Hi-Fi System Harman Kardon |
S674A=Yes |
|||||||||
| 01 | MID-range loudspeaker | ALEV 3 | 2 | 65139364956 | Shop at ECS Tuning | |||||
| 02 | Tweeter | ALEV 3 | 2 | 65139226357 | Shop at ECS Tuning | |||||
| For vehicles with Hi-Fi System Harman Kardon |
S674A=No |
|||||||||
| 03 | Midrange speaker, stereo | 2 | 65138715685 | Shop at ECS Tuning | ||||||
| For vehicles with MINI Driving Modes and Navigation system Professional and Hi-Fi System Harman Kardon and Radio MINI Visual Boost |
S4VAA=Yes S609A=Yes S674A=No S6FPA=Yes |
|||||||||
| 03 | Midrange speaker, stereo | 2 | 65138715685 | Shop at ECS Tuning | ||||||
| For vehicles with MINI Driving Modes and Navigation system Professional and Hi-Fi System Harman Kardon and Radio MINI Visual Boost |
S4VAA=Yes S609A=Yes S674A=No S6FPA=No |
|||||||||
| 03 | Midrange speaker, stereo | 2 | 65138715685 | Shop at ECS Tuning | ||||||
| For vehicles with MINI Driving Modes and Navigation system Professional and Hi-Fi System Harman Kardon and Radio MINI Visual Boost |
S4VAA=Yes S609A=No S674A=No S6FPA=Yes |
|||||||||
| 03 | Midrange speaker, stereo | 2 | 65138715685 | Shop at ECS Tuning | ||||||
| For vehicles with MINI Driving Modes and Navigation system Professional and Hi-Fi System Harman Kardon and Radio MINI Visual Boost |
S4VAA=Yes S609A=No S674A=No S6FPA=No |
|||||||||
| 03 | Midrange speaker, stereo | 2 | 65138715685 | Shop at ECS Tuning | ||||||
| For vehicles with MINI Driving Modes and Navigation system Professional and Hi-Fi System Harman Kardon and Radio MINI Visual Boost |
S4VAA=No S609A=Yes S674A=No S6FPA=Yes |
|||||||||
| 03 | Midrange speaker, stereo | 2 | 65138715685 | Shop at ECS Tuning | ||||||
| For vehicles with MINI Driving Modes and Navigation system Professional and Hi-Fi System Harman Kardon and Radio MINI Visual Boost |
S4VAA=No S609A=Yes S674A=No S6FPA=No |
|||||||||
| 03 | Midrange speaker, stereo | 2 | 65138715685 | Shop at ECS Tuning | ||||||
| For vehicles with MINI Driving Modes and Navigation system Professional and Hi-Fi System Harman Kardon and Radio MINI Visual Boost |
S4VAA=No S609A=No S674A=No S6FPA=Yes |
|||||||||
| 03 | Midrange speaker, stereo | 2 | 65138715685 | Shop at ECS Tuning | ||||||
| 04 | Fillister head screw | 6 | 07149186707 | Shop at ECS Tuning | ||||||
| 05 | Expanding nut | 7X7 MM | 6 | 65138387414 | $0.47 | Shop at ECS Tuning | ||||
