Components, antenna amplifier for BMW MINI F56 JCW (2021)

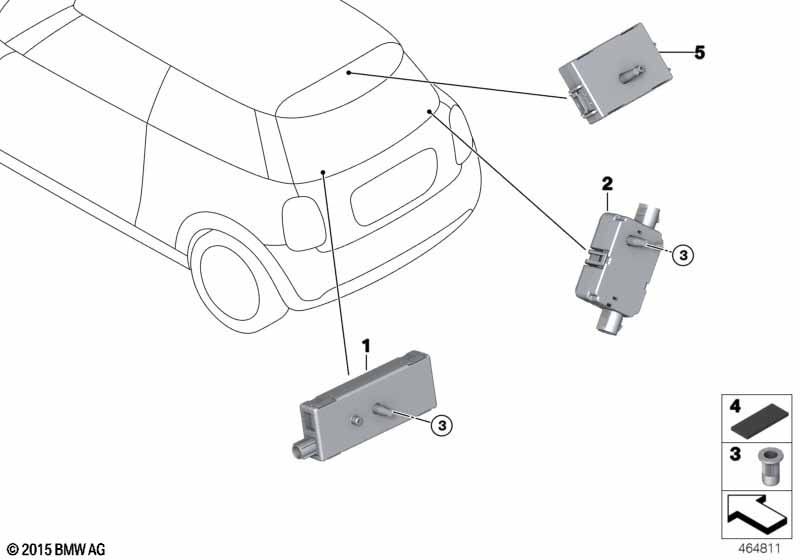

This Components, antenna amplifier technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Antenna amplifier | FM2 | 1 | 65205A58956 | Shop at ECS Tuning | |||||
| 02 | Trap circuit | 1 | 65209185474 | Shop at ECS Tuning | ||||||
| 03 | Blind rivet nut, flat headed | M5 | 1 | 65207320126 | Shop at ECS Tuning | |||||
| 04 | Set felt strip self-adhesive | 1 | 51452353024 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Wired and Navigation system Professional and Radio MINI Visual Boost and Extended mobile phone prep. w/Bluetooth and Telephony USA and Phoning with wireless charging and MINI navigation system |
L8AAA=Yes P7L5A=Yes S609A=Yes S6FPA=Yes S6NEA=Yes S6NPA=Yes S6NWA=Yes S6UMA=Yes |
|||||||||
| 05 | Suppression filter | 1 | 65209338151 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F56 JCW Components, antenna amplifier?
- This technical diagram illustrates the Components, antenna amplifier within the Audio, Navigation, Electronic Systems group for the MINI F56 JCW produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Antenna amplifier (Part #65205A58956).
- Which models use the hardware listed in this Components, antenna amplifier?
- The hardware and components featured in the Components, antenna amplifier are specific to the MINI F56 JCW produced during 2021. These technical specifications ensure that parts like the Antenna amplifier (65205A58956) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Components, antenna amplifier assembly?
- Each item in the Components, antenna amplifier corresponds to the numbered list below the illustration. For the MINI F56 JCW, you can identify the Antenna amplifier by locating its position on the schematic, which then links to the official BMW part number 65205A58956 for the Audio, Navigation, Electronic Systems section.
