Separate components for antenna system for BMW 7 Series G12 740LiX (2018)

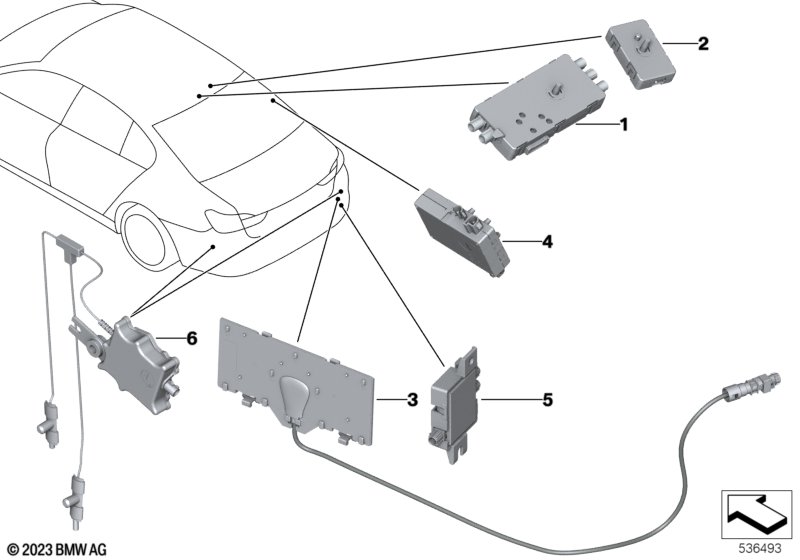

This Separate components for antenna system technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740LiX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209384058 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and TV function and DAB tuner |
L802A=No L807A=No S601A=Yes S654A=Yes |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209384056 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and TV function and DAB tuner |
L802A=No L807A=No S601A=Yes S654A=No |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209384057 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and TV function and Navigation system Professional and DAB tuner |
L802A=Yes L807A=No S601A=No S609A=No S654A=No |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209384054 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and TV function and Navigation system Professional and DAB tuner |
L802A=No L807A=No S601A=No S609A=Yes S654A=No |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209384054 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and TV function and Navigation system Professional and DAB tuner |
L802A=No L807A=No S601A=No S609A=No S654A=No |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209384054 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and TV function and Navigation system Professional and DAB tuner |
L802A=Yes L807A=Yes S601A=Yes S609A=Yes S654A=Yes |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209384055 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and TV function and Navigation system Professional and DAB tuner |
L802A=Yes L807A=Yes S601A=Yes S609A=Yes S654A=No |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209384055 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and TV function and Navigation system Professional and DAB tuner |
L802A=Yes L807A=Yes S601A=Yes S609A=No S654A=Yes |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209384055 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and TV function and Navigation system Professional and DAB tuner |
L802A=Yes L807A=Yes S601A=Yes S609A=No S654A=No |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209384055 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and TV function and Navigation system Professional and DAB tuner |
L802A=Yes L807A=Yes S601A=No S609A=Yes S654A=Yes |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209384055 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and TV function and Navigation system Professional and DAB tuner |
L802A=Yes L807A=Yes S601A=No S609A=Yes S654A=No |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209384055 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and TV function and Navigation system Professional and DAB tuner |
L802A=Yes L807A=No S601A=Yes S609A=Yes S654A=Yes |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209384055 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and TV function and Navigation system Professional and DAB tuner |
L802A=Yes L807A=No S601A=Yes S609A=Yes S654A=No |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209384055 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and TV function and Navigation system Professional and DAB tuner |
L802A=Yes L807A=No S601A=Yes S609A=No S654A=Yes |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209384055 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and TV function and Navigation system Professional and DAB tuner |
L802A=Yes L807A=No S601A=Yes S609A=No S654A=No |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209384055 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and TV function and Navigation system Professional and DAB tuner |
L802A=Yes L807A=No S601A=No S609A=Yes S654A=Yes |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209384055 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and TV function and Navigation system Professional and DAB tuner |
L802A=Yes L807A=No S601A=No S609A=Yes S654A=No |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209384055 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and TV function and Navigation system Professional and DAB tuner |
L802A=No L807A=No S601A=No S609A=Yes S654A=Yes |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209384055 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and TV function and Navigation system Professional and DAB tuner |
L802A=No L807A=No S601A=No S609A=No S654A=Yes |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209384055 | ENDED | Shop at ECS Tuning | |||||
| 02 | Suppression filter | 1 | 65209325723 | Shop at ECS Tuning | ||||||
| For vehicles with Rear compartment telephone |
S6NBA=Yes |
|||||||||
| 03 | Antenna, LTE | 2 | 65209325726 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and TV function and Fond Entertainment Experience |
L802A=No S601A=Yes S6FRA=No |
|||||||||
| 04 | Trap circuit | 2 | 65209325724 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and TV function and Fond Entertainment Experience |
L802A=No S601A=No S6FRA=Yes |
|||||||||
| 04 | Trap circuit | 2 | 65209325724 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and TV function and Fond Entertainment Experience |
L802A=No S601A=No S6FRA=No |
|||||||||
| 04 | Trap circuit | 2 | 65209325724 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and TV function and Rear Professional entertainment center and Fond Entertainment Experience |
L807A=Yes S601A=Yes S6FHA=Yes S6FRA=Yes |
|||||||||
| 04 | Trap circuit | JP | 2 | 65208734713 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and TV function and Rear Professional entertainment center and Fond Entertainment Experience |
L807A=Yes S601A=Yes S6FHA=Yes S6FRA=No |
|||||||||
| 04 | Trap circuit | JP | 2 | 65208734713 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and TV function and Rear Professional entertainment center and Fond Entertainment Experience |
L807A=Yes S601A=Yes S6FHA=No S6FRA=Yes |
|||||||||
| 04 | Trap circuit | JP | 2 | 65208734713 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and TV function and Rear entertainment Profess. with I-Drive |
L802A=No L807A=No S601A=Yes S6FRA=Yes |
|||||||||
| 04 | Trap circuit | 2 | 65208734712 | Shop at ECS Tuning | ||||||
| For vehicles with Rear compartment telephone |
S6NBA=Yes |
|||||||||
| 05 | Antenna diplexer LTE | 1 | 65209325727 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
