Single parts f rear door loudspeaker for BMW 2 Series F46 Gran Tourer LCI 220d (2021)

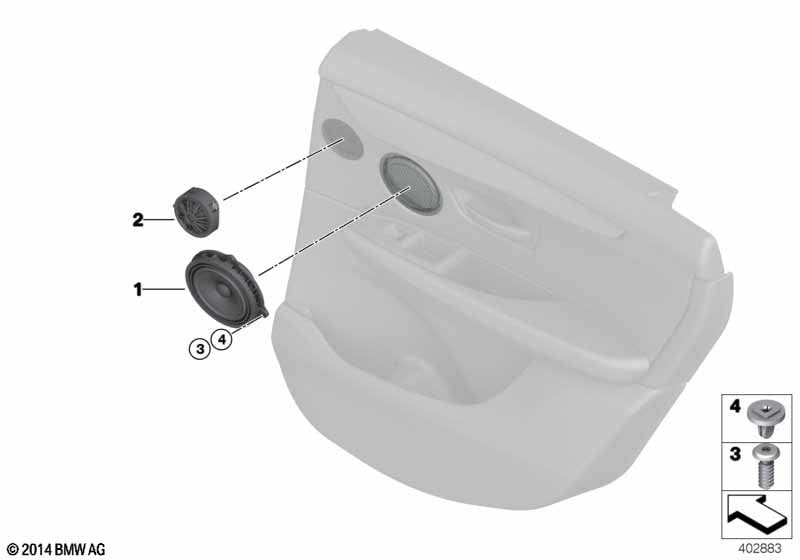

This Single parts f rear door loudspeaker technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with HiFi speaker system |
S676A=Yes |
|||||||||
| 01 | MID-range loudspeaker | 2 | 65138715686 | Shop at ECS Tuning | ||||||
| For vehicles with Hi-Fi System Harman Kardon |
S674A=Yes |
|||||||||
| 01 | MID-range loudspeaker | ALEV 3 | 2 | 65139364956 | Shop at ECS Tuning | |||||
| For vehicles with Hi-Fi System Harman Kardon and HiFi speaker system |
S674A=No S676A=No |
|||||||||
| 01 | Midrange speaker, stereo | 2 | 65138715685 | Shop at ECS Tuning | ||||||
| For vehicles with Hi-Fi System Harman Kardon |
S674A=Yes |
|||||||||
| 02 | Tweeter | ALEV 3 | 2 | 65139226357 | Shop at ECS Tuning | |||||
| 03 | Fillister head screw | TS 5X16 | 6 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | 7X7 MM | 6 | 65138387414 | $0.47 | Shop at ECS Tuning | ||||
