Loudspeaker, instrument panel for BMW 2 Series F45 Active Tourer LCI 220i (2018)

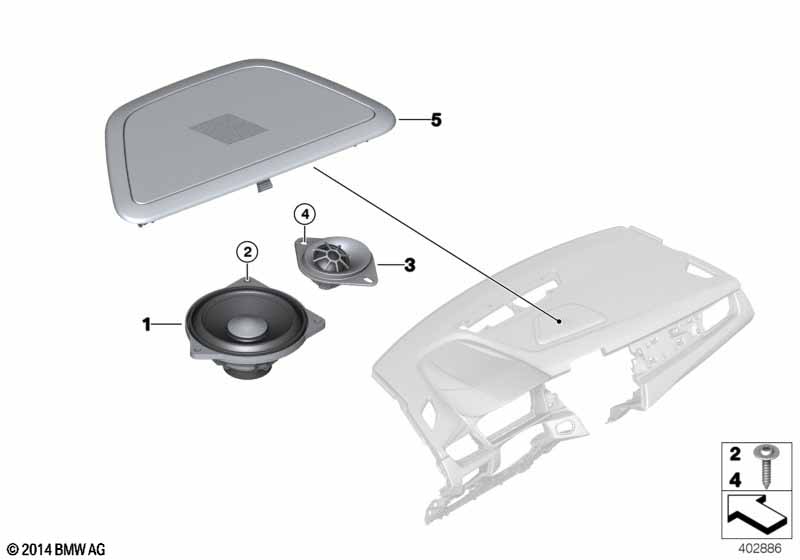

This Loudspeaker, instrument panel technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 220i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Hi-Fi System Harman Kardon |
S674A=Yes |
|||||||||
| 01 | Midrange speaker Hifi/Top-Hifi | 1 | 07/2015 | 65139368383 | Shop at ECS Tuning | |||||
| For vehicles with Interior surface in vehicle color and HiFi speaker system |
S318A=Yes S676A=Yes |
|||||||||
| 01 | Midrange speaker, stereo | 1 | 65138715683 | Shop at ECS Tuning | ||||||
| For vehicles with Interior surface in vehicle color and HiFi speaker system |
S318A=Yes S676A=No |
|||||||||
| 01 | Midrange speaker, stereo | 1 | 65138715683 | Shop at ECS Tuning | ||||||
| For vehicles with Interior surface in vehicle color and HiFi speaker system |
S318A=No S676A=Yes |
|||||||||
| 01 | Midrange speaker, stereo | 1 | 65138715683 | Shop at ECS Tuning | ||||||
| For vehicles with Interior surface in vehicle color and Hi-Fi System Harman Kardon and HiFi speaker system |
S318A=Yes S674A=Yes S676A=Yes |
|||||||||
| 02 | Oval-head screw with washer | DELTA PT4X20 | 3 | 07149185673 | Shop at ECS Tuning | |||||
| For vehicles with Interior surface in vehicle color and Hi-Fi System Harman Kardon and HiFi speaker system |
S318A=Yes S674A=Yes S676A=No |
|||||||||
| 02 | Oval-head screw with washer | DELTA PT4X20 | 3 | 07149185673 | Shop at ECS Tuning | |||||
| For vehicles with Interior surface in vehicle color and Hi-Fi System Harman Kardon and HiFi speaker system |
S318A=Yes S674A=No S676A=Yes |
|||||||||
| 02 | Oval-head screw with washer | DELTA PT4X20 | 3 | 07149185673 | Shop at ECS Tuning | |||||
| For vehicles with Interior surface in vehicle color and Hi-Fi System Harman Kardon and HiFi speaker system |
S318A=Yes S674A=No S676A=No |
|||||||||
| 02 | Oval-head screw with washer | DELTA PT4X20 | 3 | 07149185673 | Shop at ECS Tuning | |||||
| For vehicles with Interior surface in vehicle color and Hi-Fi System Harman Kardon and HiFi speaker system |
S318A=No S674A=Yes S676A=Yes |
|||||||||
| 02 | Oval-head screw with washer | DELTA PT4X20 | 3 | 07149185673 | Shop at ECS Tuning | |||||
| For vehicles with Interior surface in vehicle color and Hi-Fi System Harman Kardon and HiFi speaker system |
S318A=No S674A=Yes S676A=No |
|||||||||
| 02 | Oval-head screw with washer | DELTA PT4X20 | 3 | 07149185673 | Shop at ECS Tuning | |||||
| For vehicles with Interior surface in vehicle color and Hi-Fi System Harman Kardon and HiFi speaker system |
S318A=No S674A=No S676A=Yes |
|||||||||
| 02 | Oval-head screw with washer | DELTA PT4X20 | 3 | 07149185673 | Shop at ECS Tuning | |||||
| For vehicles with Hi-Fi System Harman Kardon |
S674A=Yes |
|||||||||
| 03 | Top-hifi loudspeaker tweeter | 1 | 65139226358 | Shop at ECS Tuning | ||||||
| 04 | Oval-head screw with washer | DELTA PT4X20 | 2 | 07149185673 | Shop at ECS Tuning | |||||
| For vehicles with Hi-Fi System Harman Kardon or HiFi speaker system |
S674A=Yes S676A=Yes |
|||||||||
| 05 | Loudspeaker cover | SCHWARZ | 1 | 64229316649 | Shop at ECS Tuning | |||||
