Amplifier / bracket for BMW 2 Series F45 Active Tourer LCI 225iX (2021)

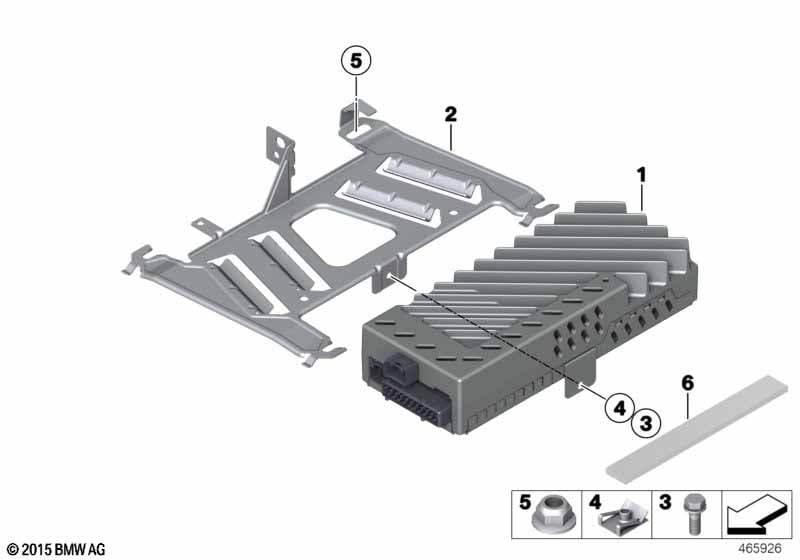

This Amplifier / bracket technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 225iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Hi-Fi System Harman Kardon |
S674A=Yes |
|||||||||
| 01 | Top-hifi system amplifier | 1 | 65125A41CD8 | Shop at ECS Tuning | ||||||
| For vehicles with HiFi speaker system |
S676A=Yes |
|||||||||
| 01 | Amplifier hifi system | 1 | 65122622759 | Shop at ECS Tuning | ||||||
| For vehicles with Hi-Fi System Harman Kardon or HiFi speaker system |
S674A=Yes S676A=Yes |
|||||||||
| 02 | Holder amplifier | 1 | 65159264556 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set felt strip self-adhesive | 1 | 51452353024 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt | M5X14-8.8-ZNNIV | 1 | 07119904269 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Clip | 2 | 65159324856 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt with washer | M6X16-U2-ZNS3 | 2 | 07119902913 | Shop at ECS Tuning | |||||
| For vehicles with Hi-Fi System Harman Kardon and HiFi speaker system |
S674A=Yes S676A=Yes |
|||||||||
| 06 | Set felt strip self-adhesive | 2 | 51452353024 | Shop at ECS Tuning | ||||||
| For vehicles with Hi-Fi System Harman Kardon and HiFi speaker system |
S674A=Yes S676A=No |
|||||||||
| 06 | Set felt strip self-adhesive | 2 | 51452353024 | Shop at ECS Tuning | ||||||
| For vehicles with Hi-Fi System Harman Kardon and HiFi speaker system |
S674A=No S676A=Yes |
|||||||||
| 06 | Set felt strip self-adhesive | 2 | 51452353024 | Shop at ECS Tuning | ||||||
