Controller for BMW 2 Series F46 Gran Tourer LCI 218i (2022)

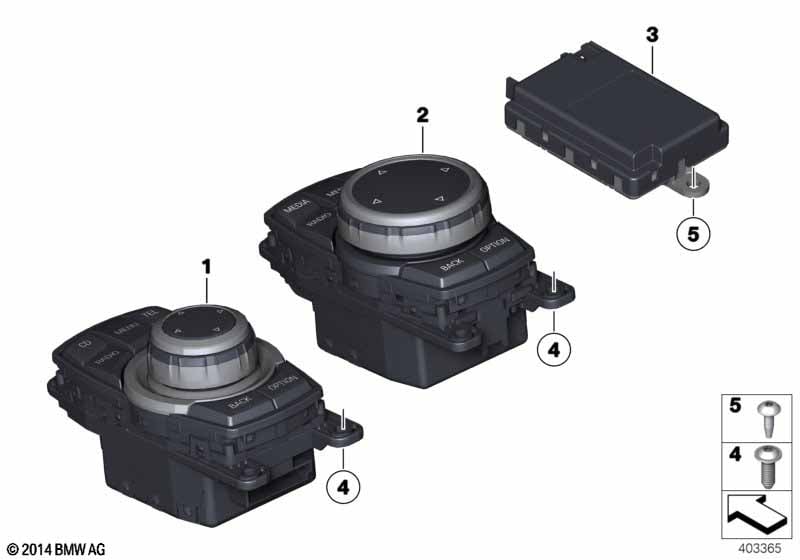

This Controller technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 218i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | BMW recommends the Security Kit TNR 2 464 228 as theft protection. |
|||||||||
| For vehicles with Navigation system Professional and Media and Navigation and Navigation Plus |
S609A=No S6FWA=Yes S6UNA=No S6UPA=No |
|||||||||
| 01 | Controller | 1 | 07/2017 | 65826802932 | Shop at ECS Tuning | |||||
| For vehicles with Navigation |
S6UNA=Yes |
|||||||||
| 02 | Controller | 1 | 07/2017 | 65825A3B1E4 | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Professional and Navigation Plus |
S609A=Yes S6UPA=Yes |
|||||||||
| 02 | Controller | TOUCH | 1 | 07/2017 | 65825A3B1E6 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Professional and Navigation and Navigation Plus |
S609A=Yes S6UNA=Yes S6UPA=Yes |
|||||||||
| 02 | Controller | 1 | 07/2019 | 65825A3B1E4 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Navigation system Professional and Navigation Plus and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes S609A=Yes S6UPA=No S8LHA=No |
|||||||||
| 03 | Control unit Controller Touch | 1 | 65829347472 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and Navigation system Professional and Navigation Plus and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Taiwan 04825 |
L802A=Yes S609A=Yes S6UPA=No S8LHA=No S8LTA=No |
|||||||||
| 03 | Control unit Controller Touch | 1 | 65829347471 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and National version China and Navigation system Professional and Navigation Plus and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Taiwan 04825 |
L807A=No L8AAA=Yes S609A=No S6UPA=Yes S8LHA=Yes S8LTA=Yes |
|||||||||
| 03 | Control unit Controller Touch | 1 | 65829347469 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version japan and National version China and Navigation system Professional and Navigation Plus and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Taiwan 04825 |
L802A=No L807A=No L8AAA=No S609A=No S6UPA=Yes S8LHA=No S8LTA=No |
|||||||||
| 03 | Control unit Controller Touch | 1 | 65829371374 | Shop at ECS Tuning | ||||||
| 04 | Fillister head screw | 4X12MM | 3 | 07147122390 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | M5X16 | 3 | 07146972074 | Shop at ECS Tuning | |||||
