Headunit High 2 for BMW 2 Series F22 228iX (2016)

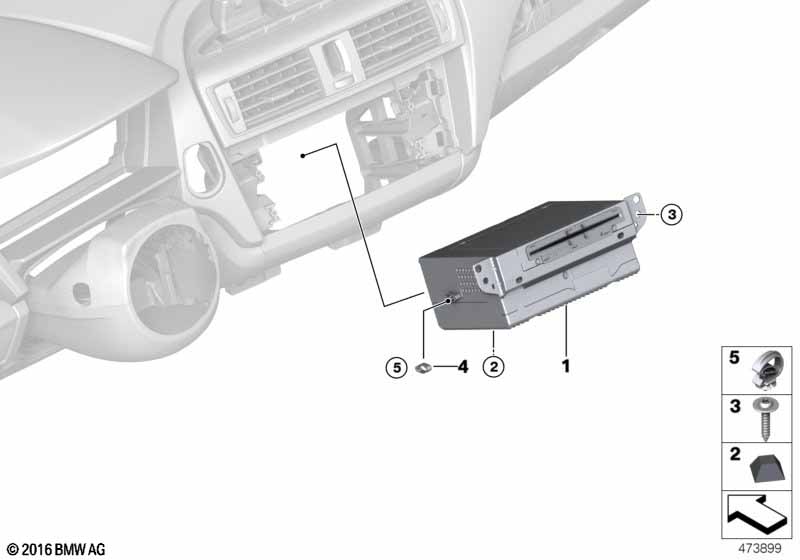

This Headunit High 2 technical drawing provides a detailed breakdown of the assembly for the 2 Series F22 228iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | A t t e n t i o n ! The defective used part must be forwarded through the exchange part return loop. It is essential to observe PARTS_051_09_14 product information bulletin! ATTENTION! If the head units are stolen, please note that the flat fee deposit is incurred for RP Reman as well as for RP parts and this must be accounted for with the insurance. BMW recommends the Security Kit TNR 2 464 228 as theft protection. For vehicles with Navigation system Professional |
S609A=Yes |
||||||||
| 01 | RP Head Unit High 2 | US | 1 | 07/2015 | 65126991583 | Shop at ECS Tuning | ||||
| 01 | REMAN Head Unit High 2 | US | 1 | 07/2015 | 65129391823 | Shop at ECS Tuning | ||||
| For vehicles with CIC-Zusteuerung |
S6VAA=No |
|||||||||
| 01 | RP Head Unit High 2 | US | 1 | 11/2014 | 65126991583 | Shop at ECS Tuning | ||||
| 01 | REMAN Head Unit High 2 | US | 1 | 11/2014 | 65129391823 | Shop at ECS Tuning | ||||
| 02 | Bump stop | 2 | 11/2014 | 51318236877 | $0.58 | Shop at ECS Tuning | ||||
| 03 | Oval-head screw with washer | DELTA PT4X20 | 2 | 11/2014 | 07149185673 | Shop at ECS Tuning | ||||
| 04 | Alignment element | 2 | 11/2014 | 65839165318 | Shop at ECS Tuning | |||||
| 05 | Clip | 1 | 11/2014 | 61139322724 | Shop at ECS Tuning | |||||
