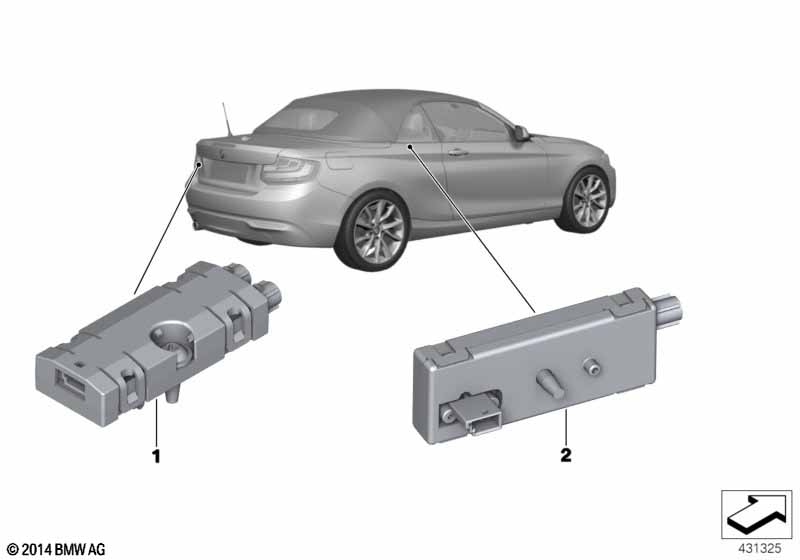

Components, antenna amplifier for BMW 2 Series F23 225d (2017)
This Components, antenna amplifier technical drawing provides a detailed breakdown of the assembly for the 2 Series F23 225d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with DAB tuner |
S654A=Yes |
|||||||||
| 01 | Amplifier for DAB | 1 | 65209199850 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan |
L807A=No |
|||||||||
| 02 | Antenna amplifier FM | 1 | 65209277818 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 02 | Antenna amplifier FM | JAPAN | 1 | 65209277817 | Shop at ECS Tuning | |||||
