Headunit High 2 for BMW 2 Series F46 Gran Tourer 216i (2018)

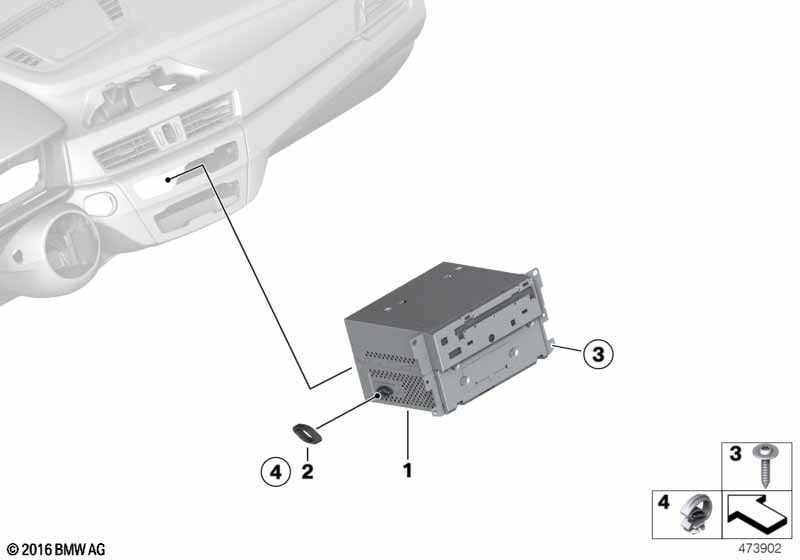

This Headunit High 2 technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer 216i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | A t t e n t i o n ! The defective used part must be forwarded through the exchange part return loop. It is essential to observe PARTS_051_09_14 product information bulletin! ATTENTION! If the head units are stolen, please note that the flat fee deposit is incurred for RP Reman as well as for RP parts and this must be accounted for with the insurance. BMW recommends the Security Kit TNR 2 464 228 as theft protection. For vehicles with Navigation system Professional |
S609A=Yes |
||||||||
| For vehicles with TV function and Navigation system Professional and Country-specific equipment Russia 10323 |
S601A=Yes S609A=Yes S8LRA=Yes |
|||||||||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2015 | 65126991581 | Shop at ECS Tuning | ||||
| 01 | RP REMAN Headunit High 2 | ECE | 1 | 07/2015 | 65129391821 | Shop at ECS Tuning | ||||
| For vehicles with TV function and Navigation system Professional and Country-specific equipment Russia 10323 |
S601A=Yes S609A=No S8LRA=Yes |
|||||||||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2015 | 65126991581 | Shop at ECS Tuning | ||||
| 01 | RP REMAN Headunit High 2 | ECE | 1 | 07/2015 | 65129391821 | Shop at ECS Tuning | ||||
| For vehicles with TV function and Navigation system Professional and Country-specific equipment Russia 10323 |
S601A=No S609A=Yes S8LRA=Yes |
|||||||||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2015 | 65126991581 | Shop at ECS Tuning | ||||
| 01 | RP REMAN Headunit High 2 | ECE | 1 | 07/2015 | 65129391821 | Shop at ECS Tuning | ||||
| 02 | Alignment element | 2 | 07/2015 | 65839165318 | Shop at ECS Tuning | |||||
| 03 | Oval-head screw with washer | DELTA PT4X20 | 4 | 07/2015 | 07149185673 | Shop at ECS Tuning | ||||
| 04 | Clip | 1 | 07/2015 | 61139322724 | Shop at ECS Tuning | |||||
