Headunit High 2 for BMW 4 Series F33 LCI 425d (2016)

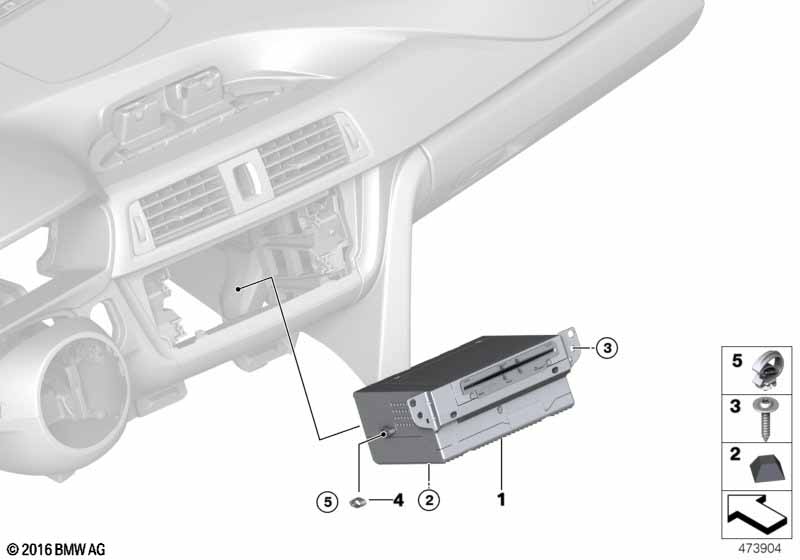

This Headunit High 2 technical drawing provides a detailed breakdown of the assembly for the 4 Series F33 LCI 425d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | A t t e n t i o n ! The defective used part must be forwarded through the exchange part return loop. It is essential to observe PARTS_051_09_14 product information bulletin! ATTENTION! If the head units are stolen, please note that the flat fee deposit is incurred for RP Reman as well as for RP parts and this must be accounted for with the insurance. BMW recommends the Security Kit TNR 2 464 228 as theft protection. For vehicles with Navigation system Professional |
S609A=Yes |
||||||||
| For vehicles with National version japan and TV function and Navigation system Professional |
L807A=Yes S601A=Yes S609A=Yes |
|||||||||
| 01 | RP Head Unit High 2 | JP | 1 | 07/2016 | 11/2020 | 65125A2E003 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 2 | JP | 1 | 07/2016 | 11/2022 | 65125A5EE62 | Shop at ECS Tuning | |||
| 01 | RP Head Unit High 2 | JP | 1 | 07/2016 | 07/2023 | 65125A7E6D6 | Shop at ECS Tuning | |||
| 01 | RP Head Unit High 2 | JP | 1 | 07/2016 | 04/2024 | 65125B34050 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 2 | JP | 1 | 07/2016 | 65125B52187 | Shop at ECS Tuning | ||||
| 01 | RP REMAN Headunit High 2 | JP | 1 | 07/2016 | 65129394579 | Shop at ECS Tuning | ||||
| For vehicles with National version China and TV function and Navigation system Professional and DAB tuner and Language version, Chinese simpl. and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Taiwan 04825 |
L8AAA=Yes S601A=Yes S609A=Yes S654A=No S866A=Yes S8LHA=Yes S8LTA=Yes |
|||||||||
| 01 | RP REMAN Headunit High 2 | CHN | 1 | 07/2016 | 65125A1A512 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and TV function and Navigation system Professional and DAB tuner and Language version, Chinese simpl. and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Taiwan 04825 |
L802A=Yes S601A=Yes S609A=Yes S654A=Yes S866A=Yes S8LHA=Yes S8LTA=Yes |
|||||||||
| 01 | Headunit High 2 | KR | 1 | 07/2016 | 11/2019 | 65129824986 | ENDED | Shop at ECS Tuning | ||
| 01 | Headunit High 2 | KR | 1 | 07/2016 | 07/2020 | 65125A0C471 | ENDED | Shop at ECS Tuning | ||
| 01 | Headunit High 2 | KR | 1 | 07/2016 | 11/2020 | 65125A2DFF7 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 2 | KR | 1 | 07/2016 | 11/2022 | 65125A5EE56 | Shop at ECS Tuning | |||
| 01 | RP Head Unit High 2 | KR | 1 | 07/2016 | 07/2023 | 65125A7E6D0 | Shop at ECS Tuning | |||
| 01 | RP Head Unit High 2 | KR | 1 | 07/2016 | 04/2024 | 65125B34039 | ENDED | Shop at ECS Tuning | ||
| 01 | Headunit High 2 | KR | 1 | 07/2016 | 65125B52181 | Shop at ECS Tuning | ||||
| For vehicles with National version China and TV function and Navigation system Professional and DAB tuner and Language version, Chinese simpl. and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Taiwan 04825 |
L8AAA=Yes S601A=Yes S609A=Yes S654A=No S866A=Yes S8LHA=Yes S8LTA=Yes |
|||||||||
| 01 | Headunit High 2 | ASIA | 1 | 07/2016 | 07/2017 | 65128794120 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 2 | ASIA | 1 | 07/2016 | 07/2020 | 65125A24033 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 2 | ASIA | 1 | 07/2016 | 65125A419A0 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan and National version China and TV function and Navigation system Professional and DAB tuner and Teleservices and Statutory emergency request and Language version, Chinese simpl. and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Taiwan 04825 |
L807A=No L8AAA=No S601A=Yes S609A=Yes S654A=No S6AEA=No S6AFA=No S866A=No S8LHA=No S8LTA=No |
|||||||||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2016 | 07/2019 | 65129877378 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2016 | 11/2020 | 65125A24041 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2016 | 03/2021 | 65125A7E6D2 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2016 | 03/2021 | 65125B34043 | Shop at ECS Tuning | |||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2016 | 03/2021 | 65125B52183 | Shop at ECS Tuning | |||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2016 | 65125A472A9 | ENDED | Shop at ECS Tuning | |||
| 01 | RP REMAN Headunit High 2 | ECE | 1 | 07/2016 | 65129394580 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and National version China and TV function and Navigation system Professional and DAB tuner and Teleservices and Statutory emergency request and Language version, Chinese simpl. and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Taiwan 04825 |
L807A=No L8AAA=No S601A=Yes S609A=Yes S654A=Yes S6AEA=No S6AFA=No S866A=No S8LHA=No S8LTA=No |
|||||||||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2016 | 07/2019 | 65129877375 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2016 | 11/2019 | 65125A08160 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2016 | 11/2020 | 65125A24038 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2016 | 03/2021 | 65125A472A6 | ENDED | Shop at ECS Tuning | ||
| 01 | RP REMAN Headunit High 2 | ECE | 1 | 07/2016 | 65129394577 | Shop at ECS Tuning | ||||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2016 | 03/2021 | 65125A7E6C9 | Shop at ECS Tuning | |||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2016 | 07/2024 | 65125B34037 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2016 | 65125B52180 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and National version China and TV function and Navigation system Professional and DAB tuner and Teleservices and Statutory emergency request and Language version, Chinese simpl. and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Taiwan 04825 |
L807A=No L8AAA=No S601A=Yes S609A=Yes S654A=Yes S6AEA=Yes S6AFA=Yes S866A=No S8LHA=No S8LTA=No |
|||||||||
| 01 | RP Head Unit High 2 | 1 | 07/2016 | 07/2017 | 65128794119 | ENDED | Shop at ECS Tuning | |||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2016 | 11/2020 | 65125A24036 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2016 | 07/2024 | 65125A28AF0 | Shop at ECS Tuning | |||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2016 | 65125B52178 | Shop at ECS Tuning | ||||
| 01 | RP REMAN Headunit High 2 | ECE | 1 | 07/2016 | 65126833996 | Shop at ECS Tuning | ||||
| 01 | RP Head Unit High 2 | 1 | 07/2016 | 07/2017 | 65128794118 | ENDED | Shop at ECS Tuning | |||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2016 | 11/2019 | 65125A08149 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2016 | 11/2020 | 65125A24035 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2016 | 03/2021 | 65125A5EE53 | Shop at ECS Tuning | |||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2016 | 03/2021 | 65125B52177 | Shop at ECS Tuning | |||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2016 | 07/2024 | 65125A5EE53 | Shop at ECS Tuning | |||
| 01 | RP Head Unit High 2 | ECE | 1 | 07/2016 | 65125B52177 | Shop at ECS Tuning | ||||
| 01 | RP REMAN Headunit High 2 | ECE | 1 | 07/2016 | 65126833995 | Shop at ECS Tuning | ||||
| 02 | Bump stop | 2 | 07/2015 | 51318236877 | $0.58 | Shop at ECS Tuning | ||||
| 03 | Oval-head screw with washer | DELTA PT4X20 | 2 | 07/2015 | 07149185673 | Shop at ECS Tuning | ||||
| 04 | Alignment element | 2 | 07/2015 | 65839165318 | Shop at ECS Tuning | |||||
| 05 | Clip | 1 | 07/2015 | 61139322724 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
