Parts f rear moulded headlng loudspeaker for BMW 5 Series G31 Touring 540dX (2020)

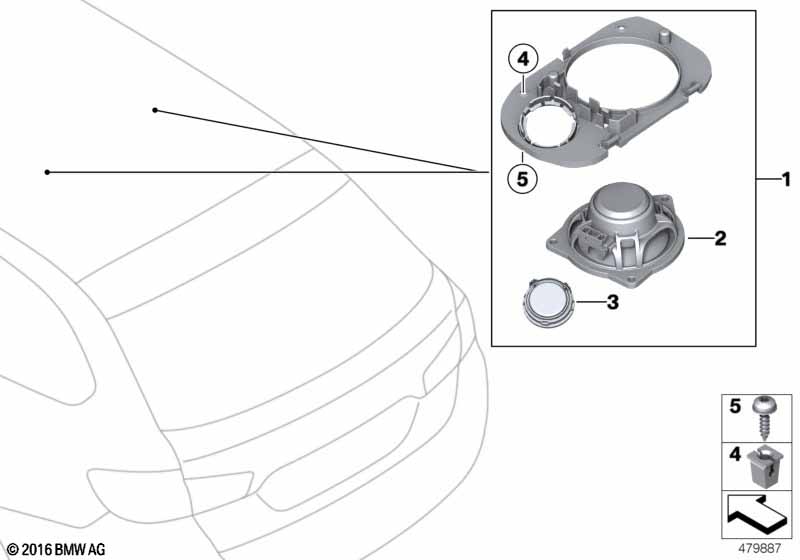

This Parts f rear moulded headlng loudspeaker technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 540dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Bowers & Wilkins High End Sound System |
S6F1A=Yes |
|||||||||
| 01 | Speaker carrier, High End, left | 1 | 65136809385 | Shop at ECS Tuning | ||||||
| 01 | Speaker carrier, High End, right | 1 | 65136809386 | Shop at ECS Tuning | ||||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 01 | Top-HiFi loudspeaker carrier, left | 1 | 65136809383 | Shop at ECS Tuning | ||||||
| 01 | Top-HiFi loudspeaker carrier, right | 1 | 65136809384 | Shop at ECS Tuning | ||||||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System |
S676A=No S688A=No S6F1A=No |
|||||||||
| 01 | Stereo loudspeaker carrier, right | 1 | 65136809380 | Shop at ECS Tuning | ||||||
| 01 | Stereo loudspeaker carrier, left | 1 | 65136809379 | Shop at ECS Tuning | ||||||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System |
S676A=Yes S688A=No S6F1A=No |
|||||||||
| 01 | HiFi loudspeaker carrier, left | 1 | 65136809381 | Shop at ECS Tuning | ||||||
| 01 | HiFi loudspeaker carrier, right | 1 | 65136809382 | Shop at ECS Tuning | ||||||
| For vehicles with Bowers & Wilkins High End Sound System |
S6F1A=Yes |
|||||||||
| 02 | MID-range loudspeaker | HIGH END | 1 | 65139279632 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 02 | Midrange speaker Hifi/Top-Hifi | 2 | 65139368383 | Shop at ECS Tuning | ||||||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System |
S676A=No S688A=No S6F1A=No |
|||||||||
| 02 | MID-range loudspeaker | 2 | 65139395859 | Shop at ECS Tuning | ||||||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System |
S676A=Yes S688A=No S6F1A=No |
|||||||||
| 02 | Mid-range speaker | HIFI | 1 | 65139354084 | Shop at ECS Tuning | |||||
| For vehicles with Bowers & Wilkins High End Sound System |
S6F1A=Yes |
|||||||||
| 03 | Tweeter | 2 | 65139279629 | Shop at ECS Tuning | ||||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 03 | Tweeter | 2 | 65139184794 | Shop at ECS Tuning | ||||||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System |
S676A=Yes S688A=No S6F1A=No |
|||||||||
| 03 | Hifi-System Tweeter | 1 | 65139362560 | Shop at ECS Tuning | ||||||
| 04 | Expanding nut | ST 4.8 | 4 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | TS 5X16 | 4 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
