Separate components for antenna system for BMW 5 Series G31 Touring 540iX (2019)

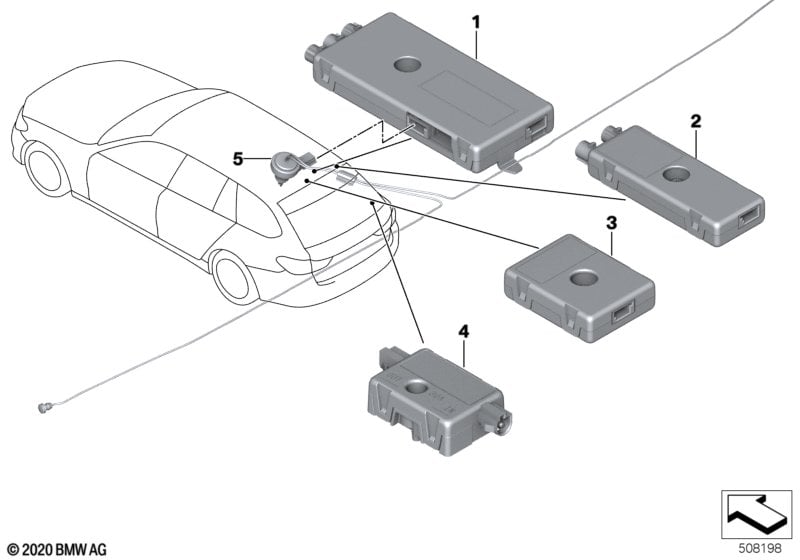

This Separate components for antenna system technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 540iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209389563 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and TV function and TV function plus |
L807A=No S601A=No S60AA=No |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209389561 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and TV function and TV function plus |
L807A=No S601A=Yes S60AA=Yes |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65208735959 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and TV function and TV function plus |
L807A=No S601A=Yes S60AA=No |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65208735959 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and TV function and TV function plus |
L807A=No S601A=No S60AA=Yes |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65208735959 | Shop at ECS Tuning | ||||||
| For vehicles with TV function and DAB tuner |
S601A=Yes S654A=Yes |
|||||||||
| 02 | Antenna amplifier DAB/TV | 1 | 65208735962 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and TV function and Rear Professional entertainment center |
L807A=Yes S601A=Yes S6FHA=No |
|||||||||
| 02 | Aerial amplifier for TV set | JAPAN | 1 | 09/2020 | 65209389558 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan and TV function and Rear Professional entertainment center Installed on left |
L807A=Yes S601A=Yes S6FHA=No |
|||||||||
| 02 | Aerial amplifier for TV set | JAPAN | 1 | 65208735963 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and TV function and Rear Professional entertainment center |
L807A=Yes S601A=Yes S6FHA=Yes |
|||||||||
| 02 | Aerial amplifier for TV set | JAPAN | 1 | 09/2020 | 65209389558 | ENDED | Shop at ECS Tuning | |||
| 02 | Aerial amplifier for TV set | JAPAN | 1 | 65208735963 | Shop at ECS Tuning | |||||
| For vehicles with TV function and TV function plus and DAB tuner and BMW Live dashboard Professional |
S601A=No S60AA=No S654A=Yes S6U3A=Yes |
|||||||||
| 02 | Antenna amplifier DAB | 1 | 65205A2AD99 | Shop at ECS Tuning | ||||||
| For vehicles with TV function and TV function plus and DAB tuner and BMW Live dashboard Professional |
S601A=No S60AA=No S654A=Yes S6U3A=No |
|||||||||
| 02 | Antenna amplifier DAB | 1 | 65205A2AD99 | Shop at ECS Tuning | ||||||
| For vehicles with TV function and TV function plus and DAB tuner and BMW Live dashboard Professional |
S601A=No S60AA=No S654A=No S6U3A=Yes |
|||||||||
| 02 | Antenna amplifier DAB | 1 | 65205A2AD99 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and TV function and TV function plus and DAB tuner |
L807A=No S601A=Yes S60AA=Yes S654A=No |
|||||||||
| 02 | Aerial amplifier for TV set | 1 | 65208735961 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and TV function and TV function plus and DAB tuner |
L807A=No S601A=Yes S60AA=No S654A=No |
|||||||||
| 02 | Aerial amplifier for TV set | 1 | 65208735961 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and TV function and TV function plus and DAB tuner |
L807A=No S601A=No S60AA=Yes S654A=No |
|||||||||
| 02 | Aerial amplifier for TV set | 1 | 65208735961 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and TV function and TV function plus and DAB tuner and Rear Professional entertainment center |
L807A=No S601A=Yes S60AA=Yes S654A=No S6FHA=Yes |
|||||||||
| 02 | Aerial amplifier for TV set | 1 | 65208735961 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and TV function and TV function plus and DAB tuner and Rear Professional entertainment center |
L807A=No S601A=Yes S60AA=No S654A=No S6FHA=Yes |
|||||||||
| 02 | Aerial amplifier for TV set | 1 | 65208735961 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and TV function and TV function plus and DAB tuner and Rear Professional entertainment center |
L807A=No S601A=No S60AA=Yes S654A=No S6FHA=Yes |
|||||||||
| 02 | Aerial amplifier for TV set | 1 | 65208735961 | Shop at ECS Tuning | ||||||
| 03 | Suppression filter | 3 PIN | 1 | 65209389559 | Shop at ECS Tuning | |||||
| 04 | Trap circuit | 1 | 65209389560 | Shop at ECS Tuning | ||||||
| 05 | Antenna AM/FM | AM/FM | 1 | 65209389549 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
