Electric parts airbag for BMW 1 Series F52 Sedan 118i (2023)

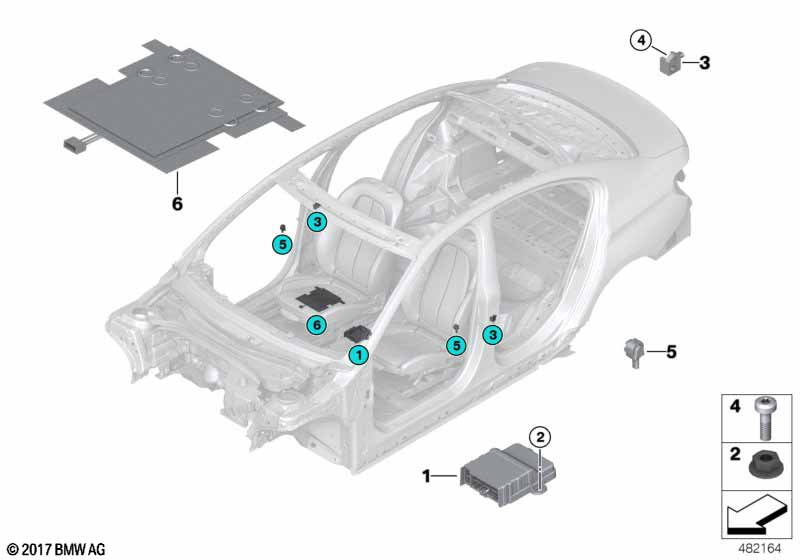

This Electric parts airbag technical drawing provides a detailed breakdown of the assembly for the 1 Series F52 Sedan 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit airbag | 2 | 65775A41CA2 | Shop at ECS Tuning | ||||||
| 02 | Hex nut | M6-8-SC-ZNNIV S | 3 | 34506859776 | Shop at ECS Tuning | |||||
| 03 | Sensor, B-pillar | 2 | 65779196100 | Shop at ECS Tuning | ||||||
| 04 | Countersunk screw | M6X20-8.8-ZNNIV | 2 | 07119907517 | Shop at ECS Tuning | |||||
| 05 | Sensor door | 2 | 65779475697 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports seats |
S711A=No |
|||||||||
| 06 | Sensor mat f co-driver's seat identif. | 1 | 65779361958 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports seats |
S711A=Yes |
|||||||||
| 06 | Sensor mat f co-driver's seat identif. | 1 | 65779377098 | Shop at ECS Tuning | ||||||
