Active Sound Design for BMW 5 Series G30 LCI 520dX (2022)

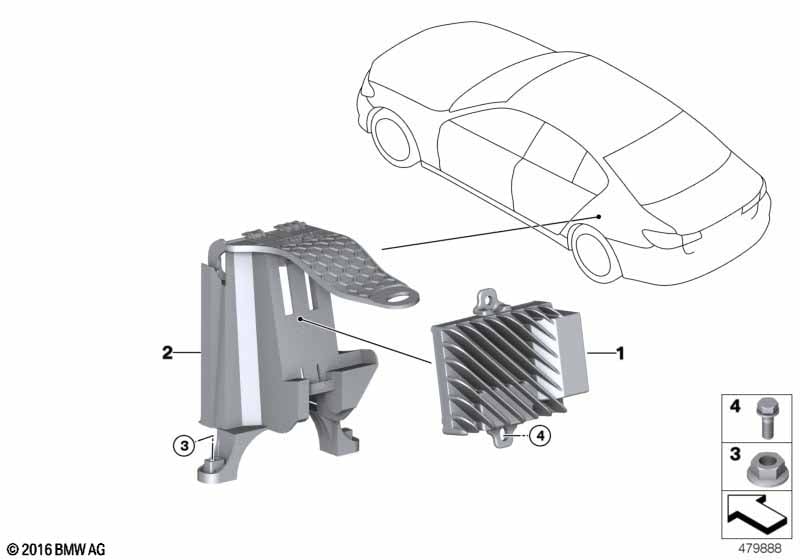

This Active Sound Design technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | ASD mount | 1 | 65159353272 | Shop at ECS Tuning | ||||||
| 03 | Hex nut with plate | M6-8-ZNNIV SI | 2 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M5X14 | 2 | 07119904337 | $0.38 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 LCI 520dX Active Sound Design?
- This technical diagram illustrates the Active Sound Design within the Audio, Navigation, Electronic Systems group for the 5 Series G30 LCI 520dX produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the ASD mount (Part #65159353272).
- Which models use the hardware listed in this Active Sound Design?
- The hardware and components featured in the Active Sound Design are specific to the 5 Series G30 LCI 520dX produced during 2022. These technical specifications ensure that parts like the ASD mount (65159353272) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Active Sound Design assembly?
- Each item in the Active Sound Design corresponds to the numbered list below the illustration. For the 5 Series G30 LCI 520dX, you can identify the ASD mount by locating its position on the schematic, which then links to the official BMW part number 65159353272 for the Audio, Navigation, Electronic Systems section.
