Single parts antenna for BMW 8 Series G15 Coupé 840dX (2023)

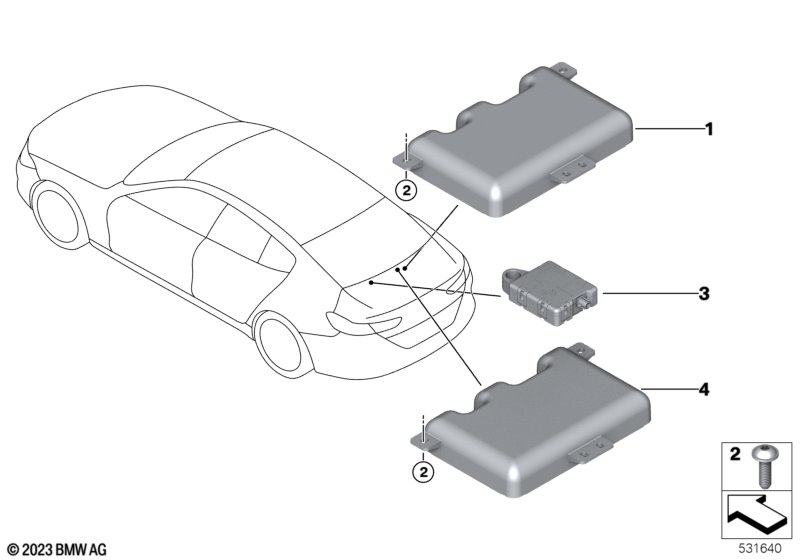

This Single parts antenna technical drawing provides a detailed breakdown of the assembly for the 8 Series G15 Coupé 840dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Satellite tuner and Preparation BMW satellite radio |
S655A=No S693A=No |
|||||||||
| 01 | Multiband telephone antenna | LTE | 1 | 65209396827 | Shop at ECS Tuning | |||||
| 02 | Torx-bolt for plastic material | ISA TS5X16 | 3 | 07149113701 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Multiband telephone antenna | LTE-GNSS | 1 | 65208795960 | Shop at ECS Tuning | |||||
