Components central bass for BMW 4 Series G26 Gran Coupé 430dX (2024)

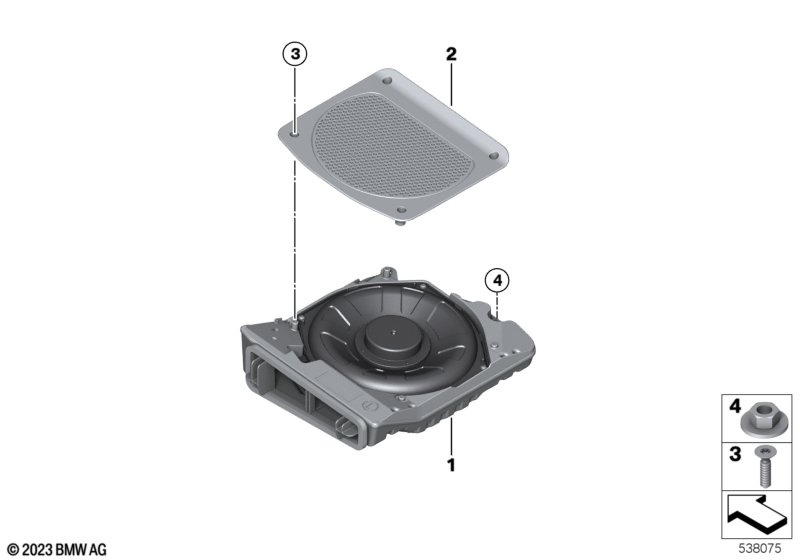

This Components central bass technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé 430dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 01 | Central bass, left | TOP-HIFI | 1 | 65132622489 | Shop at ECS Tuning | |||||
| 01 | Central bass, right | TOP-HIFI | 1 | 65132622490 | Shop at ECS Tuning | |||||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system |
S676A=Yes S688A=No |
|||||||||
| 01 | Central bass, left | HIFI | 1 | 65132622561 | Shop at ECS Tuning | |||||
| 01 | Central bass, right | HIFI | 1 | 65132622562 | Shop at ECS Tuning | |||||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system |
S676A=No S688A=No |
|||||||||
| 01 | Central bass, left | STEREO | 1 | 65132622565 | Shop at ECS Tuning | |||||
| 01 | Central bass, right | STEREO | 1 | 65132622566 | Shop at ECS Tuning | |||||
| 02 | Central woofer trim | TOP-HIFI | 2 | 65132622658 | Shop at ECS Tuning | |||||
| 03 | Countersunk head screw | 8 | 51337068211 | $0.19 | Shop at ECS Tuning | |||||
| 04 | Hex nut | BM6-8-ZNNIV SI | 4 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
