Sep.CMPT Diversity antenna amplifier for BMW 3 Series G20 Sedan 318i (2022)

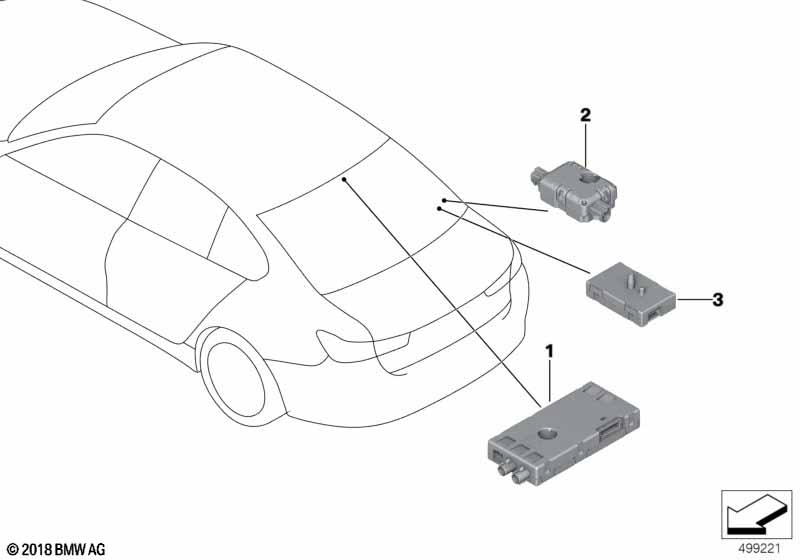

This Sep.CMPT Diversity antenna amplifier technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with DAB tuner |
S654A=Yes |
|||||||||
| 01 | Antenna amplifier | FM/AM/DAB | 1 | 65205A67756 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and TV function |
L807A=Yes S601A=No |
|||||||||
| 01 | Antenna amplifier | FM/AM/JAPAN | 1 | 03/2023 | 65206835147 | Shop at ECS Tuning | ||||
| 01 | Antenna amplifier | FM/AM/JAPAN | 1 | 65205A67755 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and DAB tuner |
L807A=No S654A=No |
|||||||||
| 01 | Antenna amplifier | FM/AM | 1 | 07/2022 | 65206835146 | Shop at ECS Tuning | ||||
| 01 | Antenna amplifier | FM/AM | 1 | 65205A67754 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and TV function |
L807A=Yes S601A=Yes |
|||||||||
| 01 | Antenna amplifier | FM/AM/TV/JAPAN | 1 | 07/2022 | 65206835150 | Shop at ECS Tuning | ||||
| 01 | Antenna amplifier | FM/AM/TV/JAPAN | 1 | 65205A67757 | Shop at ECS Tuning | |||||
| For vehicles with DAB tuner and BMW Live dashboard Professional |
S654A=Yes S6U3A=Yes |
|||||||||
| 02 | Wave trap | DAB | 1 | 65205A73DB6 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and TV function |
L807A=Yes S601A=Yes |
|||||||||
| 02 | Trap circuit | TV JAPAN | 1 | 65206835152 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and TV function and DAB tuner and BMW Live dashboard Professional |
L807A=Yes S601A=No S654A=Yes S6U3A=No |
|||||||||
| 02 | Trap circuit | 1 | 65206832256 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and TV function and DAB tuner and BMW Live dashboard Professional |
L807A=Yes S601A=No S654A=No S6U3A=Yes |
|||||||||
| 02 | Trap circuit | 1 | 65206832256 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and TV function and DAB tuner and BMW Live dashboard Professional |
L807A=Yes S601A=No S654A=No S6U3A=No |
|||||||||
| 02 | Trap circuit | 1 | 65206832256 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and TV function and DAB tuner and BMW Live dashboard Professional |
L807A=No S601A=Yes S654A=Yes S6U3A=No |
|||||||||
| 02 | Trap circuit | 1 | 65206832256 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and TV function and DAB tuner and BMW Live dashboard Professional |
L807A=No S601A=Yes S654A=No S6U3A=Yes |
|||||||||
| 02 | Trap circuit | 1 | 65206832256 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and TV function and DAB tuner and BMW Live dashboard Professional |
L807A=No S601A=Yes S654A=No S6U3A=No |
|||||||||
| 02 | Trap circuit | 1 | 65206832256 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and TV function and DAB tuner and BMW Live dashboard Professional |
L807A=No S601A=No S654A=Yes S6U3A=No |
|||||||||
| 02 | Trap circuit | 1 | 65206832256 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and TV function and DAB tuner and BMW Live dashboard Professional |
L807A=No S601A=No S654A=No S6U3A=Yes |
|||||||||
| 02 | Trap circuit | 1 | 65206832256 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and TV function and DAB tuner and BMW Live dashboard Professional |
L807A=No S601A=No S654A=No S6U3A=No |
|||||||||
| 02 | Trap circuit | 1 | 65206832256 | Shop at ECS Tuning | ||||||
| 03 | Suppression filter | 1 | 65206835155 | Shop at ECS Tuning | ||||||
