Electric parts airbag for BMW 3 Series G20 Sedan 330e (2020)

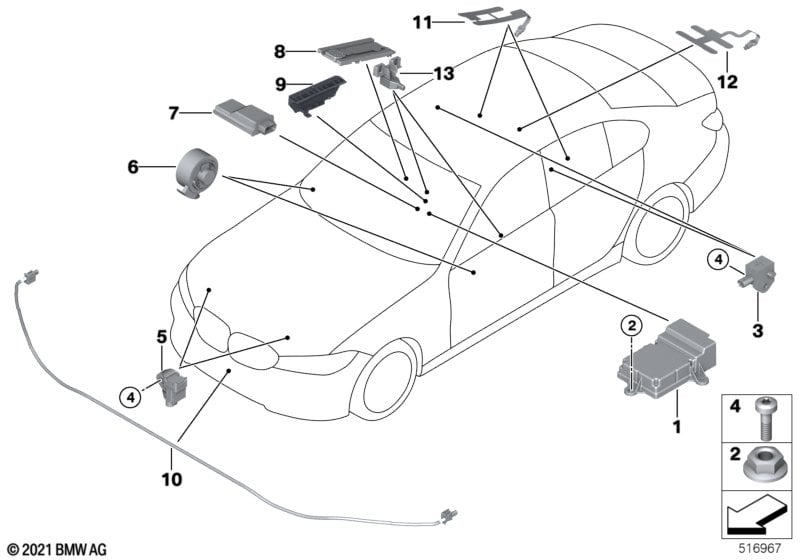

This Electric parts airbag technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Airbag control unit | 1 | 11/2022 | 65775A1FC48 | ENDED | Shop at ECS Tuning | ||||
| 01 | Airbag control unit | 20ZK | 1 | 03/2024 | 65775A656B3 | Shop at ECS Tuning | ||||
| 01 | Control unit airbag | 20ZK | 1 | 65775B44901 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive M suspension |
S2VFA=Yes |
|||||||||
| 01 | Airbag control unit | 28ZK C3 | 1 | 03/2024 | 65775A656B0 | ENDED | Shop at ECS Tuning | |||
| 01 | Airbag control unit | 28ZK C3 | 1 | 65775B448F9 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive suspension and Adaptive M suspension and Integral active steering and Adaptive suspension package 'Comfort' and Country-specific equipment Russia 10323 |
S223A=No S2VFA=No S2VHA=No S2VMA=No S8LRA=Yes |
|||||||||
| 01 | Airbag control unit | 1 | 11/2022 | 65775A1FC44 | ENDED | Shop at ECS Tuning | ||||
| 01 | Airbag control unit | 28ZK C3 | 1 | 03/2024 | 65775A656B9 | Shop at ECS Tuning | ||||
| 01 | Airbag control unit | 28ZK C3 | 1 | 65775B44905 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" and Adaptive M suspension and Integral active steering and Adaptive suspension package 'Comfort' and Country-specific equipment Russia 10323 |
S223A=No S2VAA=Yes S2VFA=No S2VHA=No S2VMA=No S8LRA=Yes |
|||||||||
| 01 | Airbag control unit | 1 | 11/2021 | 65775A19AC5 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex nut | M6-8-SC-ZNNIV S | 3 | 34506859776 | Shop at ECS Tuning | |||||
| 03 | Accelerating sensor | 2 | 07/2021 | 65779341546 | Shop at ECS Tuning | |||||
| 04 | Countersunk screw | M6X20-8.8-ZNNIV | 2 | 07119907517 | Shop at ECS Tuning | |||||
| 05 | Sensor, front | 2 | 65779349777 | Shop at ECS Tuning | ||||||
| 06 | Sensor door | 2 | 65776834911 | Shop at ECS Tuning | ||||||
| 07 | Seat occupancy sensor | 1 | 65776991455 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version japan and National version China and Country version, India and Extra package, EU-specific and Comfort access and Latin America-specific additional scopes and Thiefproofing device |
L802A=Yes L807A=Yes L8AAA=Yes L8LAA=Yes S230A=Yes S322A=Yes S8R1A=Yes S8TGA=Yes |
|||||||||
| 08 | Sensor mat f co-driver's seat identif. | 2 | 65776977932 | Shop at ECS Tuning | ||||||
| 09 | Magnet for for seat position | L/R | 2 | 65779367457 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Felt strip | 35 X 5 X 0,8 | 1 | 52207450348 | Shop at ECS Tuning | |||||
| -- | Blind rivet | 4,0X10 | 1 | 52107042164 | $0.29 | Shop at ECS Tuning | ||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 10 | Sensor for pedestrian protection PTS | 1 | 09/2020 | 65766833256 | ENDED | Shop at ECS Tuning | ||||
| 10 | Sensor for pedestrian protection PTS | 1 | 65765A0BB39 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and National version China and Extra package, EU-specific |
L807A=No L8AAA=No S230A=Yes |
|||||||||
| 11 | Sensor mat, seat, rear, outer | 2 | 07/2020 | 65779476628 | Shop at ECS Tuning | |||||
| 12 | Sensor mat, seat, rear center | 1 | 07/2020 | 65779476629 | Shop at ECS Tuning | |||||
| 13 | Sensor seat | L/R | 2 | 65779367455 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Felt strip | 35 X 5 X 0,8 | 1 | 52207450348 | Shop at ECS Tuning | |||||
| -- | Blind rivet | 4,0X10 | 1 | 52107042164 | $0.29 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
