Receiver Audio Module for BMW 7 Series G11 LCI 730dX (2020)

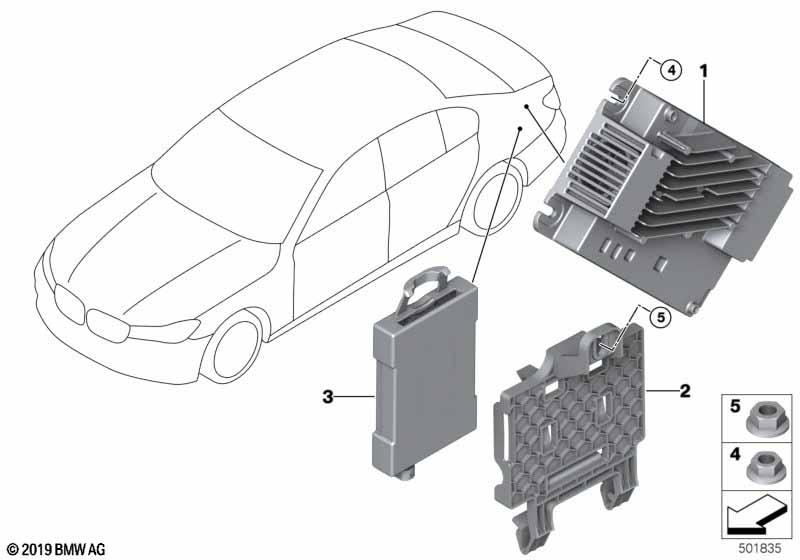

This Receiver Audio Module technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 730dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan and TV function and TV function plus and Country control for Brazil 00464 |
L807A=Yes S601A=Yes S60AA=Yes S8LBA=Yes |
|||||||||
| 01 | RP receiver audio module | TV / JP | 1 | 03/2019 | 11/2020 | 65125A2D561 | ENDED | Shop at ECS Tuning | ||
| 01 | RP receiver audio module | TV / JP | 1 | 03/2019 | 07/2022 | 65125A55AE4 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | TV / JP | 1 | 03/2019 | 09/2022 | 65125A78624 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | TV / JP | 1 | 03/2019 | 03/2023 | 65125A86487 | Shop at ECS Tuning | |||
| 01 | RP RAM | TV / JP | 1 | 03/2019 | 12/2024 | 65125A9BFA2 | Shop at ECS Tuning | |||
| 01 | RP RAM | TV / JP | 1 | 03/2019 | 65125B44D44 | Shop at ECS Tuning | ||||
| 01 | RP REMAN receiver audio modules | 1 | 03/2019 | 65129433260 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan and TV function and TV function plus and Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System |
L807A=Yes S601A=No S60AA=No S688A=No S6F1A=No |
|||||||||
| 01 | RP RAM | MID VICS | 1 | 03/2019 | 03/2021 | 65125A47593 | Shop at ECS Tuning | |||
| For vehicles with National version japan and TV function and TV function plus and Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System |
L807A=Yes S601A=No S60AA=No S688A=Yes S6F1A=Yes |
|||||||||
| 01 | RP receiver audio module | VICS | 1 | 03/2019 | 03/2021 | 65125A3AF29 | ENDED | Shop at ECS Tuning | ||
| 01 | RP receiver audio module | VICS | 1 | 03/2019 | 07/2021 | 65125A47590 | ENDED | Shop at ECS Tuning | ||
| 01 | RP receiver audio module | HIGH VICS | 1 | 03/2019 | 03/2022 | 65125A57043 | Shop at ECS Tuning | |||
| 01 | RP RAM | HIGH VICS | 1 | 03/2019 | 07/2022 | 65125A55AE5 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | HIGH VICS | 1 | 03/2019 | 09/2022 | 65125A78625 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | HIGH VICS | 1 | 03/2019 | 11/2022 | 65125A80730 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | HIGH VICS | 1 | 03/2019 | 12/2024 | 65125A9BFA3 | Shop at ECS Tuning | |||
| 01 | RP RAM | HIGH VICS | 1 | 03/2019 | 65125B44D45 | Shop at ECS Tuning | ||||
| 01 | RP REMAN receiver audio modules | HIGH VICS | 1 | 03/2019 | 65129841730 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Korea and National version japan and TV function and TV function plus and Country control for Brazil 00464 |
L802A=No L807A=No S601A=Yes S60AA=Yes S8LBA=No |
|||||||||
| 01 | RP RAM | TV / ECE | 1 | 03/2019 | 07/2021 | 65125A47588 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | TV / ECE | 1 | 03/2019 | 07/2022 | 65125A55AE3 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | TV / ECE | 1 | 03/2019 | 08/2022 | 65125A758D6 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | TV / ECE | 1 | 03/2019 | 03/2023 | 65125A86486 | Shop at ECS Tuning | |||
| 01 | RP RAM | TV / ECE | 1 | 03/2019 | 12/2024 | 65125A9BFA0 | Shop at ECS Tuning | |||
| 01 | RP RAM | TV / ECE | 1 | 03/2019 | 65125B44D42 | Shop at ECS Tuning | ||||
| 01 | RP REMAN receiver audio modules | 1 | 03/2019 | 65129433259 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan and TV function and TV function plus and DAB tuner and Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System |
L807A=No S601A=No S60AA=No S654A=Yes S688A=Yes S6F1A=Yes |
|||||||||
| 01 | RP RAM | DAB HIGH | 1 | 03/2019 | 03/2021 | 65125A3AF32 | ENDED | Shop at ECS Tuning | ||
| 01 | RP receiver audio module | DAB HIGH | 1 | 03/2019 | 07/2021 | 65125A47586 | ENDED | Shop at ECS Tuning | ||
| 01 | RP receiver audio module | DAB HIGH | 1 | 03/2019 | 07/2021 | 65125A4CE53 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | DAB HIGH | 1 | 03/2019 | 07/2022 | 65125A55AD7 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | DAB HIGH | 1 | 03/2019 | 09/2022 | 65125A78617 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | DAB HIGH | 1 | 03/2019 | 03/2023 | 65125A86480 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | DAB HIGH | 1 | 03/2019 | 07/2023 | 65125A923C9 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | DAB HIGH | 1 | 03/2019 | 11/2024 | 65125A9BF88 | Shop at ECS Tuning | |||
| 01 | RP RAM | DAB HIGH | 1 | 03/2019 | 65125B44D30 | Shop at ECS Tuning | ||||
| 01 | RP REMAN receiver audio modules | 1 | 03/2019 | 65129433257 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan and TV function and TV function plus and DAB tuner and Satellite tuner and Harman/Kardon Surround Sound system and Preparation BMW satellite radio and Bowers & Wilkins High End Sound System |
L807A=No S601A=No S60AA=No S654A=No S655A=No S688A=Yes S693A=No S6F1A=Yes |
|||||||||
| 01 | RP receiver audio module | 1 | 03/2019 | 07/2021 | 65125A47585 | ENDED | Shop at ECS Tuning | |||
| 01 | RP RAM | HIGH | 1 | 03/2019 | 07/2021 | 65125A55AD6 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | HIGH | 1 | 03/2019 | 07/2021 | 65125A758C9 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | HIGH | 1 | 03/2019 | 07/2021 | 65125A86479 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | HIGH | 1 | 03/2019 | 07/2021 | 65125A923C8 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | HIGH R | 1 | 03/2019 | 07/2021 | 65125A9BF95 | Shop at ECS Tuning | |||
| 01 | RP RAM | HIGH R | 1 | 03/2019 | 07/2021 | 65125B44D37 | Shop at ECS Tuning | |||
| For vehicles with National version Korea and National version japan and Acoustic pedestrian protection and TV function and TV function plus and DAB tuner and Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System |
L802A=Yes L807A=No S4U9A=Yes S601A=No S60AA=No S654A=Yes S688A=No S6F1A=No |
|||||||||
| 01 | RP RAM | DAB | 1 | 03/2019 | 07/2021 | 65125A47591 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | MID DAB | 1 | 03/2019 | 07/2022 | 65125A55AE7 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | MID DAB | 1 | 03/2019 | 03/2023 | 65125A86490 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | MID DAB | 1 | 03/2019 | 12/2024 | 65125A9BFA5 | Shop at ECS Tuning | |||
| 01 | RP RAM | MID DAB | 1 | 03/2019 | 65125B44D47 | Shop at ECS Tuning | ||||
| 01 | RP REMAN receiver audio modules | DAB | 1 | 03/2019 | 65129841731 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Korea and National version japan and Acoustic pedestrian protection and TV function and TV function plus and DAB tuner and Satellite tuner and Harman/Kardon Surround Sound system and Preparation BMW satellite radio and Bowers & Wilkins High End Sound System |
L802A=No L807A=No S4U9A=No S601A=No S60AA=No S654A=No S655A=No S688A=No S693A=No S6F1A=No |
|||||||||
| 01 | RP receiver audio module | 1 | 03/2019 | 03/2021 | 65125A3AF28 | ENDED | Shop at ECS Tuning | |||
| 01 | RP RAM | 1 | 03/2019 | 07/2021 | 65125A47220 | ENDED | Shop at ECS Tuning | |||
| 01 | RP RAM | MID | 1 | 03/2019 | 07/2022 | 65125A55AE6 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | MID | 1 | 03/2019 | 11/2022 | 65125A7DDA1 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | MID | 1 | 03/2019 | 03/2023 | 65125A86489 | Shop at ECS Tuning | |||
| 01 | RP RAM | MID HP R | 1 | 03/2019 | 12/2024 | 65125A9BFA7 | Shop at ECS Tuning | |||
| 01 | RP RAM | MID HP R | 1 | 03/2019 | 65125B44D49 | Shop at ECS Tuning | ||||
| 01 | RP REMAN RAM | 1 | 03/2019 | 03/2023 | 65129433261 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Korea and National version japan and TV function plus |
L802A=Yes L807A=Yes S60AA=Yes |
|||||||||
| 02 | Adapter bracket CI Plus module | TV CARD | 1 | 03/2019 | 65158796394 | Shop at ECS Tuning | ||||
| 03 | CI Plus module - TV map | 1 | 65128792114 | Shop at ECS Tuning | ||||||
| 04 | Hex nut | M5 | 3 | 07119905710 | $2.83 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and National version japan and TV function plus |
L802A=Yes L807A=Yes S60AA=Yes |
|||||||||
| 05 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
