Receiver Audio Module for BMW 5 Series G30 520d (2020)

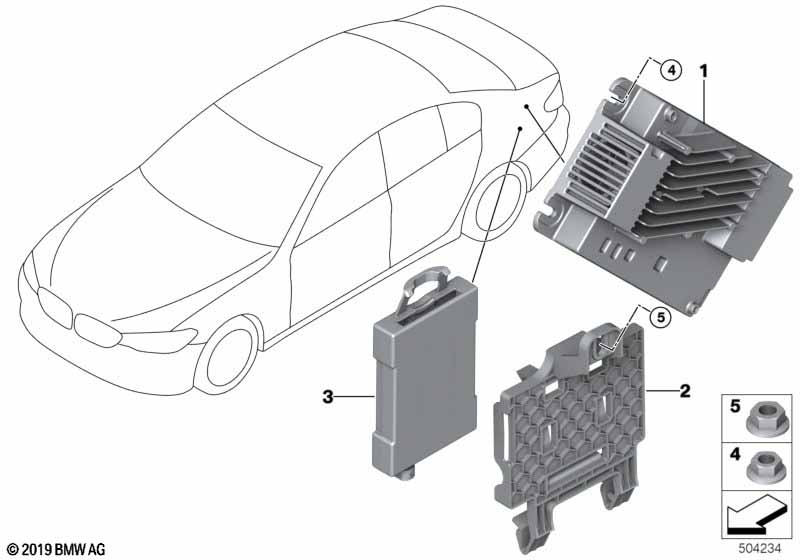

This Receiver Audio Module technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with TV function and TV function plus and BMW Live dashboard Professional |
S601A=Yes S60AA=Yes S6U3A=Yes |
|||||||||
| 01 | RP RAM | TV / ECE | 1 | 07/2019 | 03/2023 | 65125A86486 | Shop at ECS Tuning | |||
| 01 | RP RAM | TV / ECE | 1 | 07/2019 | 12/2024 | 65125A9BFA0 | Shop at ECS Tuning | |||
| 01 | RP RAM | TV / ECE | 1 | 07/2019 | 65125B44D42 | Shop at ECS Tuning | ||||
| 01 | RP REMAN receiver audio modules | 1 | 07/2019 | 65129433259 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with TV function and TV function plus and DAB tuner and Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System and BMW Live dashboard Professional |
S601A=No S60AA=No S654A=Yes S688A=Yes S6F1A=Yes S6U3A=Yes |
|||||||||
| 01 | RP RAM | DAB HIGH | 1 | 07/2019 | 07/2021 | 65125A86480 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | DAB HIGH | 1 | 07/2019 | 07/2021 | 65125A923C9 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | DAB HIGH | 1 | 07/2019 | 07/2021 | 65125A9BF88 | Shop at ECS Tuning | |||
| 01 | RP RAM | DAB HIGH | 1 | 07/2019 | 07/2021 | 65125B44D30 | Shop at ECS Tuning | |||
| For vehicles with TV function and TV function plus and DAB tuner and Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System and BMW Live dashboard Professional |
S601A=No S60AA=No S654A=No S688A=Yes S6F1A=Yes S6U3A=Yes |
|||||||||
| 01 | RP RAM | HIGH | 1 | 07/2019 | 07/2020 | 65125A86479 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | HIGH | 1 | 07/2019 | 07/2020 | 65125A923C8 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | HIGH R | 1 | 07/2019 | 07/2020 | 65125A9BF95 | Shop at ECS Tuning | |||
| 01 | RP RAM | HIGH R | 1 | 07/2019 | 07/2020 | 65125B44D37 | Shop at ECS Tuning | |||
| For vehicles with TV function and TV function plus and DAB tuner and HiFi speaker system and Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System and BMW Live dashboard Professional |
S601A=No S60AA=No S654A=No S676A=Yes S688A=No S6F1A=No S6U3A=Yes |
|||||||||
| 01 | RP RAM | MID | 1 | 07/2019 | 07/2020 | 65125A57044 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | MID | 1 | 07/2019 | 07/2020 | 65125A7DDA1 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | MID | 1 | 07/2019 | 07/2020 | 65125A86489 | Shop at ECS Tuning | |||
| 01 | RP RAM | MID HP R | 1 | 07/2019 | 07/2020 | 65125A9BFA7 | Shop at ECS Tuning | |||
| 01 | RP RAM | MID HP R | 1 | 07/2019 | 07/2020 | 65125B44D49 | Shop at ECS Tuning | |||
| 01 | RP REMAN RAM | 1 | 07/2019 | 07/2020 | 65129433261 | ENDED | Shop at ECS Tuning | |||
| For vehicles with TV function and TV function plus and DAB tuner and HiFi speaker system and Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System and BMW Live dashboard Professional |
S601A=No S60AA=No S654A=Yes S676A=No S688A=No S6F1A=No S6U3A=Yes |
|||||||||
| 01 | RP RAM | BASE DAB | 1 | 07/2019 | 07/2020 | 65125A4CE50 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | BASE DAB | 1 | 07/2019 | 07/2020 | 65125A55AD2 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | BASE DAB | 1 | 07/2019 | 07/2020 | 65125A923C4 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | BASE DAB | 1 | 07/2019 | 07/2020 | 65125A9BF79 | Shop at ECS Tuning | |||
| 01 | RP RAM | BASE DAB | 1 | 07/2019 | 07/2020 | 65125B44D23 | Shop at ECS Tuning | |||
| 01 | RP REMAN receiver audio modules | DAB | 1 | 07/2019 | 07/2020 | 65129841726 | ENDED | Shop at ECS Tuning | ||
| For vehicles with TV function and TV function plus and DAB tuner and HiFi speaker system and Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System and BMW Live dashboard Professional |
S601A=No S60AA=No S654A=Yes S676A=Yes S688A=No S6F1A=No S6U3A=Yes |
|||||||||
| 01 | RP RAM | MID DAB | 1 | 07/2019 | 07/2020 | 65125A55AE7 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | MID DAB | 1 | 07/2019 | 07/2020 | 65125A73336 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | MID DAB | 1 | 07/2019 | 07/2020 | 65125A86490 | ENDED | Shop at ECS Tuning | ||
| 01 | RP RAM | MID DAB | 1 | 07/2019 | 07/2020 | 65125A9BFA5 | Shop at ECS Tuning | |||
| 01 | RP RAM | MID DAB | 1 | 07/2019 | 07/2020 | 65125B44D47 | Shop at ECS Tuning | |||
| 01 | RP REMAN receiver audio modules | DAB | 1 | 07/2019 | 07/2020 | 65129841731 | ENDED | Shop at ECS Tuning | ||
| For vehicles with TV function plus |
S60AA=Yes |
|||||||||
| 02 | Adapter bracket CI Plus module | TV CARD | 1 | 65158796394 | Shop at ECS Tuning | |||||
| 03 | CI Plus module - TV map | 1 | 65128792114 | Shop at ECS Tuning | ||||||
| 04 | Hex nut | M5 | 3 | 07119905710 | $2.83 | Shop at ECS Tuning | ||||
| For vehicles with TV function plus |
S60AA=Yes |
|||||||||
| 05 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
