Receiver Audio Module for BMW 6 Series G32 GT 640dX (2020)

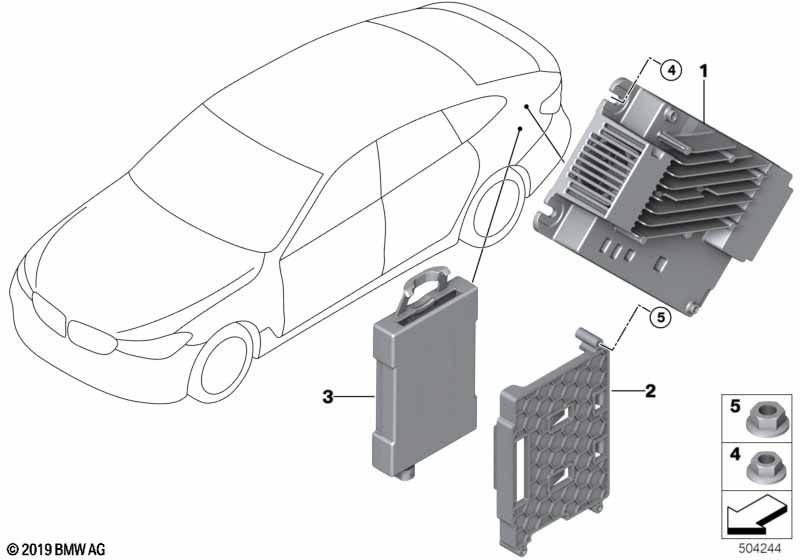

This Receiver Audio Module technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 640dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with TV function and TV function plus |
S601A=Yes S60AA=Yes |
|||||||||
| 01 | RP RAM | TV / ECE | 1 | 07/2021 | 65125A47588 | ENDED | Shop at ECS Tuning | |||
| 01 | RP RAM | TV / ECE | 1 | 07/2022 | 65125A55AE3 | ENDED | Shop at ECS Tuning | |||
| 01 | RP RAM | TV / ECE | 1 | 08/2022 | 65125A758D6 | ENDED | Shop at ECS Tuning | |||
| 01 | RP RAM | TV / ECE | 1 | 03/2023 | 65125A86486 | Shop at ECS Tuning | ||||
| 01 | RP RAM | TV / ECE | 1 | 12/2024 | 65125A9BFA0 | Shop at ECS Tuning | ||||
| 01 | RP RAM | TV / ECE | 1 | 65125B44D42 | Shop at ECS Tuning | |||||
| For vehicles with TV function and TV function plus and Country control for Brazil 00464 |
S601A=Yes S60AA=Yes S8LBA=Yes |
|||||||||
| 01 | RP RAM | TV / JP | 1 | 07/2020 | 65125A167A9 | ENDED | Shop at ECS Tuning | |||
| 01 | RP receiver audio module | TV / JP | 1 | 11/2020 | 65125A2D561 | ENDED | Shop at ECS Tuning | |||
| 01 | RP receiver audio module | TV / JP | 1 | 07/2022 | 65125A55AE4 | ENDED | Shop at ECS Tuning | |||
| 01 | RP RAM | TV / JP | 1 | 09/2022 | 65125A78624 | ENDED | Shop at ECS Tuning | |||
| 01 | RP RAM | TV / JP | 1 | 03/2023 | 65125A86487 | Shop at ECS Tuning | ||||
| 01 | RP RAM | TV / JP | 1 | 12/2024 | 65125A9BFA2 | Shop at ECS Tuning | ||||
| 01 | RP RAM | TV / JP | 1 | 65125B44D44 | Shop at ECS Tuning | |||||
| 01 | RP REMAN receiver audio modules | 1 | 65129433260 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with TV function and TV function plus and Country control for Brazil 00464 |
S601A=Yes S60AA=Yes S8LBA=No |
|||||||||
| 01 | RP RAM | TV / ECE | 1 | 07/2020 | 65125A167A8 | ENDED | Shop at ECS Tuning | |||
| 01 | RP REMAN receiver audio modules | 1 | 65129433259 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with TV function and TV function plus and DAB tuner and HiFi speaker system and Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System |
S601A=No S60AA=No S654A=No S676A=No S688A=No S6F1A=No |
|||||||||
| 01 | RP receiver audio module | TMC | 1 | 07/2020 | 65125A167A3 | ENDED | Shop at ECS Tuning | |||
| 01 | RP receiver audio module | 1 | 03/2021 | 65125A3AF28 | ENDED | Shop at ECS Tuning | ||||
| 01 | RP RAM | 1 | 07/2021 | 65125A47220 | ENDED | Shop at ECS Tuning | ||||
| 01 | RP RAM | MID | 1 | 07/2022 | 65125A55AE6 | ENDED | Shop at ECS Tuning | |||
| 01 | RP RAM | MID | 1 | 11/2022 | 65125A7DDA1 | ENDED | Shop at ECS Tuning | |||
| 01 | RP RAM | MID | 1 | 03/2023 | 65125A86489 | Shop at ECS Tuning | ||||
| 01 | RP RAM | MID HP R | 1 | 12/2024 | 65125A9BFA7 | Shop at ECS Tuning | ||||
| 01 | RP RAM | MID HP R | 1 | 65125B44D49 | Shop at ECS Tuning | |||||
| 01 | RP REMAN receiver audio modules | 1 | 03/2023 | 65129841727 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with TV function and TV function plus and DAB tuner and HiFi speaker system and Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System |
S601A=No S60AA=No S654A=Yes S676A=Yes S688A=No S6F1A=No |
|||||||||
| 01 | RP RAM | DAB | 1 | 07/2020 | 65125A167B2 | ENDED | Shop at ECS Tuning | |||
| 01 | RP RAM | DAB | 1 | 07/2021 | 65125A47591 | ENDED | Shop at ECS Tuning | |||
| 01 | RP RAM | MID DAB | 1 | 07/2022 | 65125A55AE7 | ENDED | Shop at ECS Tuning | |||
| 01 | RP RAM | MID DAB | 1 | 03/2023 | 65125A86490 | ENDED | Shop at ECS Tuning | |||
| 01 | RP RAM | MID DAB | 1 | 12/2024 | 65125A9BFA5 | Shop at ECS Tuning | ||||
| 01 | RP RAM | MID DAB | 1 | 65125B44D47 | Shop at ECS Tuning | |||||
| 01 | RP REMAN receiver audio modules | DAB | 1 | 65129841731 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with TV function and TV function plus and DAB tuner and HiFi speaker system and Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System |
S601A=No S60AA=No S654A=Yes S676A=No S688A=No S6F1A=No |
|||||||||
| 01 | RP RAM | DAB | 1 | 07/2020 | 65125A167A1 | ENDED | Shop at ECS Tuning | |||
| 01 | RP receiver audio module | DAB | 1 | 11/2020 | 65125A2D553 | ENDED | Shop at ECS Tuning | |||
| 01 | RP RAM | BASE DAB | 1 | 11/2021 | 65125A4CE50 | ENDED | Shop at ECS Tuning | |||
| 01 | RP RAM | BASE DAB | 1 | 07/2022 | 65125A55AD2 | ENDED | Shop at ECS Tuning | |||
| 01 | RP RAM | BASE DAB | 1 | 08/2022 | 65125A758C4 | ENDED | Shop at ECS Tuning | |||
| 01 | RP RAM | BASE DAB | 1 | 07/2023 | 65125A923C4 | ENDED | Shop at ECS Tuning | |||
| 01 | RP RAM | BASE DAB | 1 | 12/2024 | 65125A9BF79 | Shop at ECS Tuning | ||||
| 01 | RP RAM | BASE DAB | 1 | 65125B44D23 | Shop at ECS Tuning | |||||
| 01 | RP REMAN receiver audio modules | DAB | 1 | 65129841726 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with TV function and TV function plus and Satellite tuner and HiFi speaker system and Harman/Kardon Surround Sound system and Preparation BMW satellite radio and Bowers & Wilkins High End Sound System |
S601A=No S60AA=No S655A=No S676A=Yes S688A=No S693A=No S6F1A=No |
|||||||||
| 01 | RP RAM | 1 | 07/2020 | 65125A167B1 | ENDED | Shop at ECS Tuning | ||||
| 01 | RP REMAN RAM | 1 | 03/2023 | 65129433261 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with TV function and TV function plus and DAB tuner and Satellite tuner and Harman/Kardon Surround Sound system and Preparation BMW satellite radio and Bowers & Wilkins High End Sound System |
S601A=No S60AA=No S654A=No S655A=No S688A=Yes S693A=No S6F1A=Yes |
|||||||||
| 01 | RP receiver audio module | 1 | 07/2021 | 65125A47585 | ENDED | Shop at ECS Tuning | ||||
| 01 | RP RAM | HIGH | 1 | 07/2021 | 65125A55AD6 | ENDED | Shop at ECS Tuning | |||
| 01 | RP RAM | HIGH | 1 | 07/2021 | 65125A758C9 | ENDED | Shop at ECS Tuning | |||
| 01 | RP RAM | HIGH | 1 | 07/2021 | 65125A86479 | ENDED | Shop at ECS Tuning | |||
| 01 | RP RAM | HIGH | 1 | 07/2021 | 65125A923C8 | ENDED | Shop at ECS Tuning | |||
| 01 | RP RAM | HIGH R | 1 | 07/2021 | 65125A9BF95 | Shop at ECS Tuning | ||||
| 01 | RP RAM | HIGH R | 1 | 07/2021 | 65125B44D37 | Shop at ECS Tuning | ||||
| For vehicles with TV function plus |
S60AA=Yes |
|||||||||
| 02 | Adapter bracket CI Plus module | TV CARD | 1 | 65158796395 | Shop at ECS Tuning | |||||
| 03 | CI Plus module - TV map | 1 | 65128792114 | Shop at ECS Tuning | ||||||
| 04 | Hex nut | M5 | 3 | 07119905710 | $2.83 | Shop at ECS Tuning | ||||
| For vehicles with TV function plus |
S60AA=Yes |
|||||||||
| 05 | Fillister head screw | ST5X17-ZNS3 | 3 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series G32 GT 640dX Receiver Audio Module?
- This technical diagram illustrates the Receiver Audio Module within the Audio, Navigation, Electronic Systems group for the 6 Series G32 GT 640dX produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the RP RAM (Part #65125A47588).
- Which models use the hardware listed in this Receiver Audio Module?
- The hardware and components featured in the Receiver Audio Module are specific to the 6 Series G32 GT 640dX produced during 2020. These technical specifications ensure that parts like the RP RAM (65125A47588) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Receiver Audio Module assembly?
- Each item in the Receiver Audio Module corresponds to the numbered list below the illustration. For the 6 Series G32 GT 640dX, you can identify the RP RAM by locating its position on the schematic, which then links to the official BMW part number 65125A47588 for the Audio, Navigation, Electronic Systems section.
