Single parts, antenna, Comfort access for BMW 1 Series F40 116i (2024)

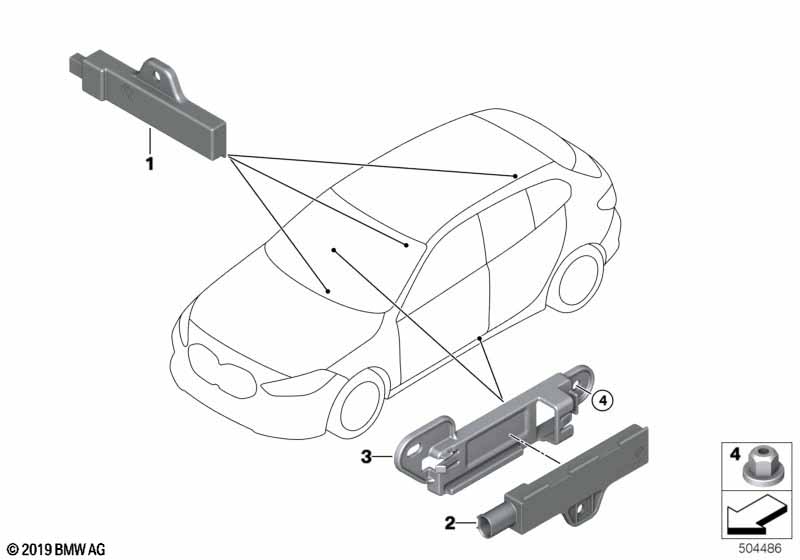

This Single parts, antenna, Comfort access technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 116i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Interior antenna, Comfort Access | 3 | 65205A5D3C0 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 02 | Outside antenna, comfort access | 2 | 65206832066 | Shop at ECS Tuning | ||||||
| 03 | Bracket for Comfort Access antenna | 2 | 61139397075 | Shop at ECS Tuning | ||||||
| 04 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F40 116i Single parts, antenna, Comfort access?
- This technical diagram illustrates the Single parts, antenna, Comfort access within the Audio, Navigation, Electronic Systems group for the 1 Series F40 116i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Interior antenna, Comfort Access (Part #65205A5D3C0).
- Which models use the hardware listed in this Single parts, antenna, Comfort access?
- The hardware and components featured in the Single parts, antenna, Comfort access are specific to the 1 Series F40 116i produced during 2024. These technical specifications ensure that parts like the Interior antenna, Comfort Access (65205A5D3C0) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts, antenna, Comfort access assembly?
- Each item in the Single parts, antenna, Comfort access corresponds to the numbered list below the illustration. For the 1 Series F40 116i, you can identify the Interior antenna, Comfort Access by locating its position on the schematic, which then links to the official BMW part number 65205A5D3C0 for the Audio, Navigation, Electronic Systems section.
