Controller for BMW 2 Series F44 Gran Coupé 220iX (2024)

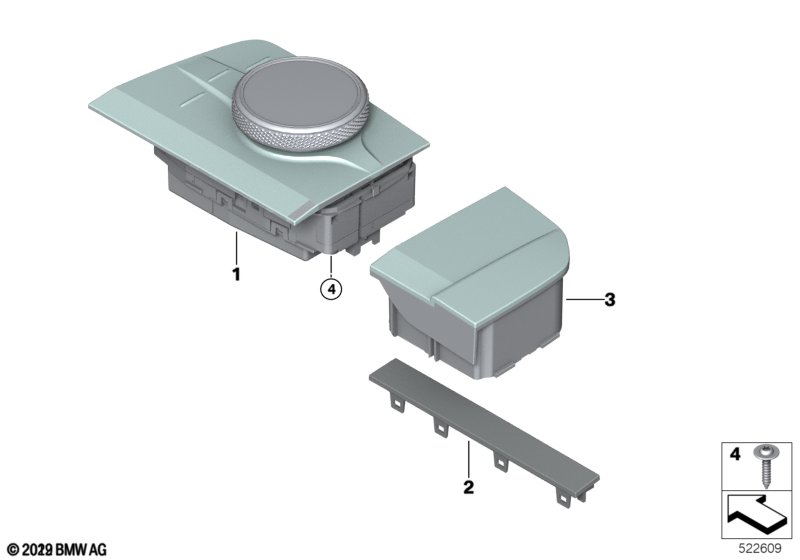

This Controller technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé 220iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | BMW recommends the Security Kit TNR 2 464 228 as theft protection. |
|||||||||
| For vehicles with Automatic transmission and Sport automatic transmission and Steptronic with twin-clutch gearbox and BMW Live dashboard Plus and BMW Live dashboard Professional |
S205A=No S2TBA=No S2TFA=No S6U2A=Yes S6U3A=Yes |
|||||||||
| 01 | Controller | 1 | 03/2025 | 65825A371A9 | Shop at ECS Tuning | |||||
| 01 | Controller | 1 | 65825B6B5A1 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission and Steptronic with twin-clutch gearbox and BMW Live dashboard Plus and BMW Live dashboard Professional |
S205A=Yes S2TBA=Yes S2TFA=Yes S6U2A=Yes S6U3A=Yes |
|||||||||
| 01 | Controller | LHD BLACK MAT | 1 | 03/2025 | 65825A371B2 | Shop at ECS Tuning | ||||
| 01 | Controller | LHD BLACK MAT | 1 | 65825B6B583 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission and Steptronic with twin-clutch gearbox and BMW Live dashboard Plus and BMW Live dashboard Professional |
S205A=No S2TBA=No S2TFA=No S6U2A=No S6U3A=No |
|||||||||
| 01 | Controller | 1 | 65825A371A8 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission and Steptronic with twin-clutch gearbox and BMW Live dashboard Plus and BMW Live dashboard Professional |
S205A=Yes S2TBA=Yes S2TFA=Yes S6U2A=No S6U3A=No |
|||||||||
| 01 | Controller | LHD | 1 | 65825A371B0 | Shop at ECS Tuning | |||||
| 02 | Cover, central operating unit | LHD | 1 | 65826995228 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission and Steptronic with twin-clutch gearbox |
S205A=Yes S2TBA=Yes S2TFA=Yes |
|||||||||
| 03 | Cover, central operating unit | LHD | 1 | 65826995226 | Shop at ECS Tuning | |||||
| 04 | Fillister head screw | DELTA PT4X16 | 4 | 07149197038 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F44 Gran Coupé 220iX Controller?
- This technical diagram illustrates the Controller within the Audio, Navigation, Electronic Systems group for the 2 Series F44 Gran Coupé 220iX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Controller (Part #65825A371A9).
- Which models use the hardware listed in this Controller?
- The hardware and components featured in the Controller are specific to the 2 Series F44 Gran Coupé 220iX produced during 2024. These technical specifications ensure that parts like the Controller (65825A371A9) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Controller assembly?
- Each item in the Controller corresponds to the numbered list below the illustration. For the 2 Series F44 Gran Coupé 220iX, you can identify the Controller by locating its position on the schematic, which then links to the official BMW part number 65825A371A9 for the Audio, Navigation, Electronic Systems section.
