Electric parts airbag for BMW 1 Series F40 120i (2024)

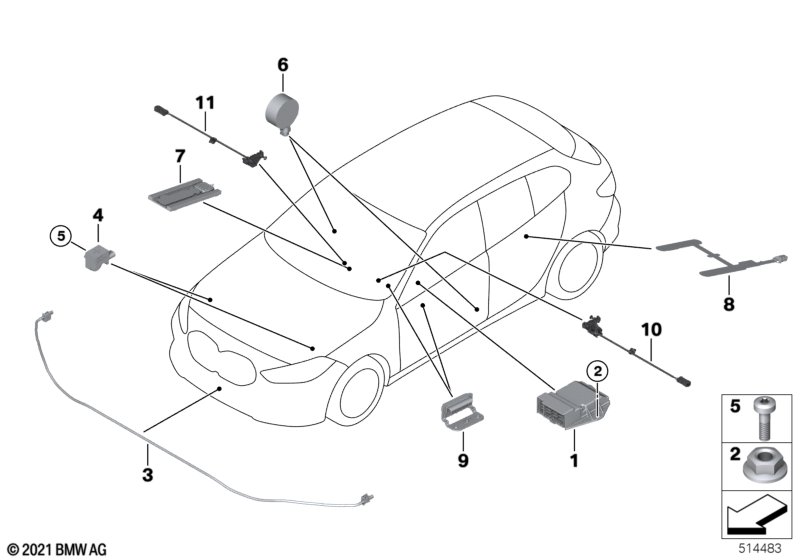

This Electric parts airbag technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Country-specific equipment Russia 10323 |
S8LRA=Yes |
|||||||||
| 01 | Airbag control unit | 1 | 65775B44906 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version japan and National version China and Extra package, EU-specific and Country-specific equipment Russia 10323 |
L802A=Yes L807A=Yes L8AAA=Yes S230A=Yes S8LRA=No |
|||||||||
| 01 | Airbag control unit | 28ZK V2 | 1 | 65775B44904 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and National version China and Extra package, EU-specific and Country-specific equipment Russia 10323 |
L802A=No L807A=No L8AAA=No S230A=No S8LRA=No |
|||||||||
| 01 | Control unit airbag | 20ZK V2 | 1 | 65775B44902 | Shop at ECS Tuning | |||||
| 02 | Hex nut | M6-8-SC-ZNNIV S | 3 | 34506859776 | Shop at ECS Tuning | |||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 03 | Sensor for pedestrian protection PTS | 1 | 65765A0BB38 | Shop at ECS Tuning | ||||||
| 04 | Accelerating sensor | 2 | 65779341546 | Shop at ECS Tuning | ||||||
| 05 | Countersunk screw | M6X20-8.8-ZNNIV | 2 | 07119907517 | Shop at ECS Tuning | |||||
| 06 | Sensor door | 2 | 65776834911 | Shop at ECS Tuning | ||||||
| 07 | Sensor mat f co-driver's seat identif. | 1 | 65779361958 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version japan and Extra package, EU-specific and Comfort access and M Sports seats and Latin America-specific additional scopes and Thiefproofing device |
L802A=Yes L807A=Yes S230A=Yes S322A=Yes S711A=Yes S8R1A=Yes S8TGA=Yes |
|||||||||
| 07 | Sensor mat f co-driver's seat identif. | 1 | 65777943986 | ENDED | Shop at ECS Tuning | |||||
| 07 | Sensor mat f co-driver's seat identif. | 1 | 65779377098 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and Extra package, EU-specific |
L807A=No S230A=Yes |
|||||||||
| 08 | Sensor mat, rear seats | DOUBLEFINGER | 2 | 65777948144 | Shop at ECS Tuning | |||||
| 08 | Sensor mat, rear seats | MONOFINGER | 1 | 65777948147 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory and Seat adjuster, electric, with memory |
S459A=Yes S45AA=Yes |
|||||||||
| 09 | Magnet for for seat position | 2 | 65779311510 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Seat adjuster, electric, with memory |
S459A=No S45AA=No |
|||||||||
| 10 | Sensor, seat, left | 1 | 65776993869 | Shop at ECS Tuning | ||||||
| 11 | Sensor, seat, right | 1 | 65776993870 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
