Loudspeaker components for headlining for BMW 3 Series G21 Touring 330eX (2022)

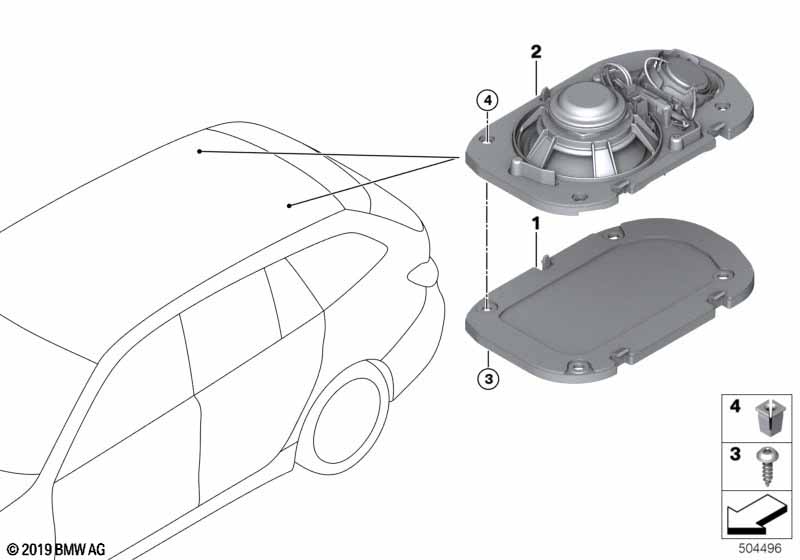

This Loudspeaker components for headlining technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 330eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 01 | Top-HiFi loudspeaker carrier, left | 1 | 65132622487 | Shop at ECS Tuning | ||||||
| 01 | Top-HiFi loudspeaker carrier, right | 1 | 65132622488 | Shop at ECS Tuning | ||||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=No |
|||||||||
| 02 | Cover left | 1 | 65132622867 | Shop at ECS Tuning | ||||||
| 02 | Cover right | 1 | 65132622868 | Shop at ECS Tuning | ||||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 03 | Fillister head screw | TS 5X16 | 8 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | ST4,8MM | 8 | 51717154520 | $0.23 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G21 Touring 330eX Loudspeaker components for headlining?
- This technical diagram illustrates the Loudspeaker components for headlining within the Audio, Navigation, Electronic Systems group for the 3 Series G21 Touring 330eX produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Top-HiFi loudspeaker carrier, left (Part #65132622487).
- Which models use the hardware listed in this Loudspeaker components for headlining?
- The hardware and components featured in the Loudspeaker components for headlining are specific to the 3 Series G21 Touring 330eX produced during 2022. These technical specifications ensure that parts like the Top-HiFi loudspeaker carrier, left (65132622487) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Loudspeaker components for headlining assembly?
- Each item in the Loudspeaker components for headlining corresponds to the numbered list below the illustration. For the 3 Series G21 Touring 330eX, you can identify the Top-HiFi loudspeaker carrier, left by locating its position on the schematic, which then links to the official BMW part number 65132622487 for the Audio, Navigation, Electronic Systems section.
