Headunit High 2 for BMW MINI F56 JCW (2017)

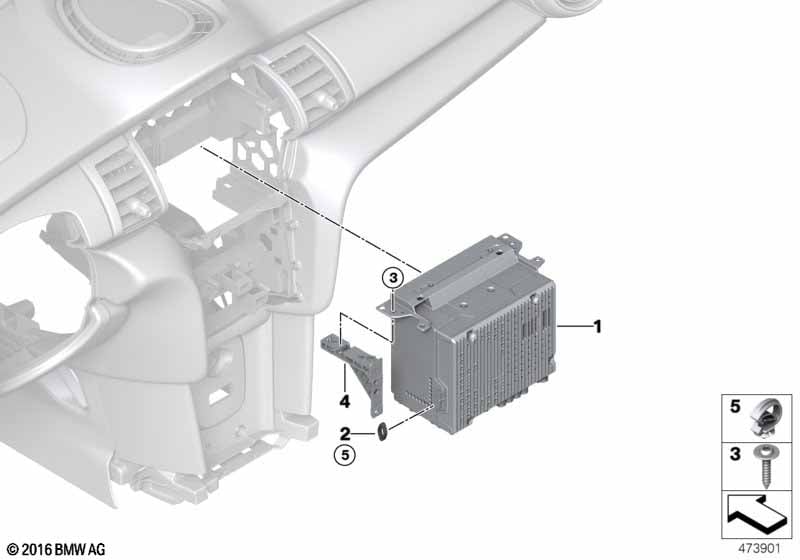

This Headunit High 2 technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | A t t e n t i o n ! The defective used part must be forwarded through the exchange part return loop. It is essential to observe PARTS_051_09_14 product information bulletin! ATTENTION! If the head units are stolen, please note that the flat fee deposit is incurred for RP Reman as well as for RP parts and this must be accounted for with the insurance. BMW recommends the Security Kit TNR 2 464 228 as theft protection. For vehicles with National version japan and Navigation system Professional |
L807A=Yes S609A=Yes |
||||||||
| 02 | Alignment element | 2 | 07/2015 | 65839165318 | Shop at ECS Tuning | |||||
| 03 | Oval-head screw with washer | DELTA PT4X20 | 4 | 07/2015 | 07149185673 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Navigation system Professional |
L807A=Yes S609A=Yes |
|||||||||
| 04 | Holder, head unit, left | 1 | 07/2015 | 03/2021 | 65129326861 | ENDED | Shop at ECS Tuning | |||
| 04 | Holder, head unit left | 1 | 07/2015 | 65125A1EDE3 | Shop at ECS Tuning | |||||
| 04 | Holder, head unit, right | 1 | 07/2015 | 03/2021 | 65129326862 | Shop at ECS Tuning | ||||
| 04 | Holder, head unit right | 1 | 07/2015 | 65125A1EDE4 | Shop at ECS Tuning | |||||
| 05 | Clip | 1 | 07/2015 | 61139322724 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
