Head unit, basic with GPS2 for BMW 5 Series G30 530dX (2020)

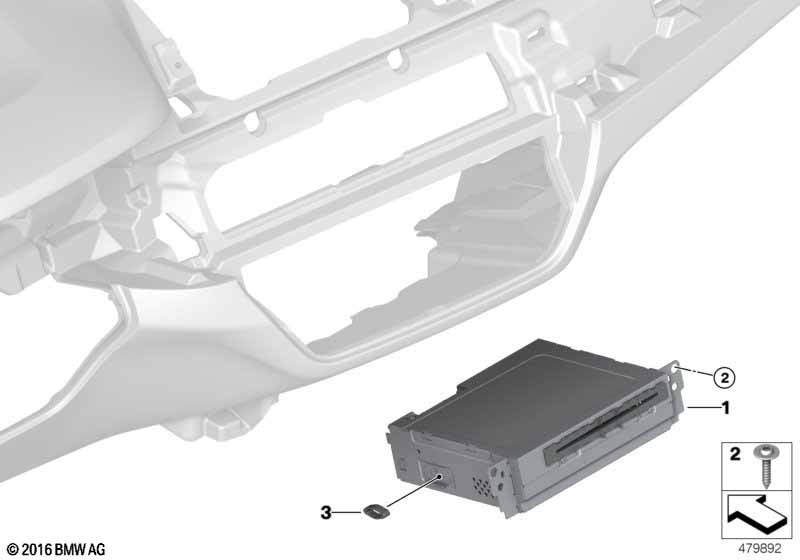

This Head unit, basic with GPS2 technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 530dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | A t t e n t i o n ! The defective used part must be forwarded through the exchange part return loop. It is essential to observe PARTS_051_09_14 product information bulletin! ATTENTION! If the head units are stolen, please note that the flat fee deposit is incurred for RP Reman as well as for RP parts and this must be accounted for with the insurance. BMW recommends the Security Kit TNR 2 464 228 as theft protection. |
|||||||||
| For vehicles with Navigation system Business and Teleservices and Statutory emergency request |
S606A=Yes S6AEA=No S6AFA=No |
|||||||||
| 01 | RP Head Unit Basic navigation 2 | ECE | 1 | 07/2018 | 07/2020 | 65125A7A160 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Headunit Basic Navigation 2 | ECE | 1 | 07/2018 | 07/2020 | 65125B36361 | Shop at ECS Tuning | |||
| 01 | RP Head Unit Basic navigation 2 | ECE | 1 | 07/2018 | 07/2020 | 65125B53572 | Shop at ECS Tuning | |||
| 01 | REMAN HU-B Navigation 2 | 1 | 07/2018 | 07/2020 | 65128733470 | ENDED | Shop at ECS Tuning | |||
| For vehicles with TV function and Navigation system Business and Navigation system Professional and DAB tuner and Bowers & Wilkins High End Sound System |
S601A=No S606A=Yes S609A=No S654A=Yes S6F1A=Yes |
|||||||||
| 01 | RP Head Unit Basic navigation 2 | ECE | 1 | 07/2020 | 65125A7A160 | ENDED | Shop at ECS Tuning | |||
| 01 | RP Headunit Basic Navigation 2 | ECE | 1 | 07/2020 | 65125B36361 | Shop at ECS Tuning | ||||
| 01 | RP Head Unit Basic navigation 2 | ECE | 1 | 07/2020 | 65125B53572 | Shop at ECS Tuning | ||||
| 01 | REMAN HU-B Navigation 2 | 1 | 07/2020 | 65128733470 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with TV function and Navigation system Business and Navigation system Professional and DAB tuner and Teleservices and Statutory emergency request and Preparation Apple CarPlay |
S601A=No S606A=Yes S609A=No S654A=No S6AEA=Yes S6AFA=Yes S6CPA=No |
|||||||||
| 01 | Head unit, basic with GPS2 | ECE | 1 | 07/2018 | 07/2020 | 65125A3B499 | ENDED | Shop at ECS Tuning | ||
| 01 | RP HU-B Navigation 2 | ECE | 1 | 07/2018 | 07/2020 | 65125B36357 | Shop at ECS Tuning | |||
| 01 | RP HU-B Navigation 2 | ECE | 1 | 07/2018 | 07/2020 | 65125B53568 | Shop at ECS Tuning | |||
| 01 | RP REMAN Head Unit Basic Navigation 2 | 1 | 07/2018 | 07/2020 | 65128733467 | ENDED | Shop at ECS Tuning | |||
| For vehicles with TV function and Navigation system Business and Navigation system Professional and DAB tuner and Teleservices and Statutory emergency request and Preparation Apple CarPlay |
S601A=No S606A=Yes S609A=No S654A=Yes S6AEA=Yes S6AFA=Yes S6CPA=No |
|||||||||
| 01 | RP Head Unit Basic navigation 2 | ECE | 1 | 07/2018 | 07/2020 | 65125A3B4C3 | Shop at ECS Tuning | |||
| 01 | RP Head Unit Basic navigation 2 | ECE | 1 | 07/2018 | 07/2020 | 65125A5EF40 | ENDED | Shop at ECS Tuning | ||
| 01 | RP HU-B Navigation 2 | ECE | 1 | 07/2018 | 07/2020 | 65125B36358 | ENDED | Shop at ECS Tuning | ||
| 01 | RP HU-B Navigation 2 | ECE | 1 | 07/2018 | 07/2020 | 65125B53569 | Shop at ECS Tuning | |||
| For vehicles with TV function and Navigation system Business and Navigation system Professional and DAB tuner and Harman/Kardon Surround Sound system and Teleservices and Statutory emergency request and Preparation Apple CarPlay and Bowers & Wilkins High End Sound System |
S601A=No S606A=Yes S609A=No S654A=No S688A=No S6AEA=Yes S6AFA=Yes S6CPA=Yes S6F1A=No |
|||||||||
| 01 | RP Head Unit Basic navigation 2 | ECE | 1 | 07/2018 | 07/2020 | 65125A24630 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit Basic navigation 2 | ECE | 1 | 07/2018 | 07/2020 | 65125A3B4A9 | ENDED | Shop at ECS Tuning | ||
| 01 | Head unit basic navigation 2 | ECE | 1 | 07/2018 | 07/2020 | 65125B36354 | Shop at ECS Tuning | |||
| 01 | Head unit basic navigation 2 | ECE | 1 | 07/2018 | 07/2020 | 65125B53565 | Shop at ECS Tuning | |||
| 01 | RP REMAN Head Unit Basic Navigation 2 | 1 | 07/2018 | 07/2020 | 65128733465 | ENDED | Shop at ECS Tuning | |||
| 01 | RP Head Unit Basic navigation 2 | ECE | 1 | 07/2020 | 65125A24630 | ENDED | Shop at ECS Tuning | |||
| 01 | RP Head Unit Basic navigation 2 | ECE | 1 | 07/2020 | 65125A3B4A9 | ENDED | Shop at ECS Tuning | |||
| 01 | Head unit basic navigation 2 | ECE | 1 | 07/2020 | 65125B36354 | Shop at ECS Tuning | ||||
| 01 | Head unit basic navigation 2 | ECE | 1 | 07/2020 | 65125B53565 | Shop at ECS Tuning | ||||
| 02 | Oval-head screw with washer | DELTA PT4X20 | 2 | 07/2020 | 07149185673 | Shop at ECS Tuning | ||||
| 02 | Oval-head screw with washer | DELTA PT4X20 | 2 | 08/2020 | 07149185673 | Shop at ECS Tuning | ||||
| 03 | Guide | 2 | 07/2020 | 65126929837 | $1.29 | Shop at ECS Tuning | ||||
| 03 | Guide | 2 | 08/2020 | 65126929837 | $1.29 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
