Head unit High 3 for BMW 5 Series G30 LCI 530e (2023)

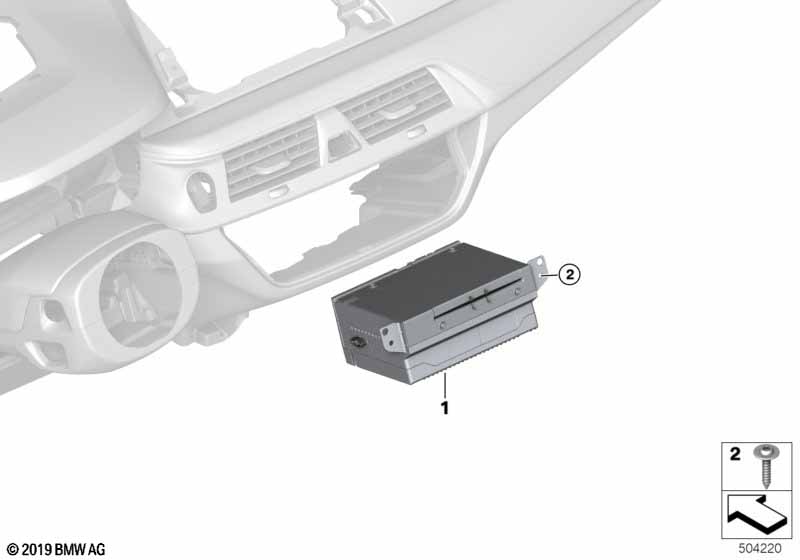

This Head unit High 3 technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | A t t e n t i o n ! The defective used part must be forwarded through the exchange part return loop. It is essential to observe PARTS_051_09_14 product information bulletin! ATTENTION! If the head units are stolen, please note that the flat fee deposit is incurred for RP Reman as well as for RP parts and this must be accounted for with the insurance. BMW recommends the Security Kit TNR 2 464 228 as theft protection. For vehicles with BMW Live dashboard Professional |
S6U3A=Yes |
||||||||
| For vehicles with Rear Professional entertainment center and Country control for Mexico 10360 |
S6FHA=Yes S8LMA=Yes |
|||||||||
| 01 | RP Head Unit High 3 | US | 1 | 07/2020 | 07/2023 | 65125A8F4B3 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 3 | US | 1 | 07/2020 | 11/2023 | 65125B33F93 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 3 | US | 1 | 07/2020 | 12/2024 | 65125B3F824 | Shop at ECS Tuning | |||
| 01 | RP Head Unit High 3 | US | 1 | 07/2020 | 65125B48529 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and CD player |
L807A=Yes S650A=No |
|||||||||
| 01 | RP Head Unit High 3 | JP | 1 | 07/2020 | 11/2023 | 65125B33F88 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 3 | JP | 1 | 07/2020 | 12/2024 | 65125B3F819 | Shop at ECS Tuning | |||
| 01 | RP Head Unit High 3 | JP | 1 | 07/2020 | 65125B48524 | Shop at ECS Tuning | ||||
| For vehicles with CD player and Rear Professional entertainment center and BMW Live dashboard Professional and Country control for Mexico 10360 |
S650A=No S6FHA=Yes S6U3A=Yes S8LMA=No |
|||||||||
| 01 | RP Head Unit High 3 | ROW | 1 | 07/2020 | 11/2023 | 65125B33F82 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 3 | ROW | 1 | 07/2020 | 12/2024 | 65125B3F807 | Shop at ECS Tuning | |||
| 01 | RP Head Unit High 3 | ROW | 1 | 07/2020 | 65125B48518 | Shop at ECS Tuning | ||||
| For vehicles with CD player and Rear Professional entertainment center and Night Vision with human recognition and Country control for Mexico 10360 |
S650A=No S6FHA=No S6UKA=No S8LMA=Yes |
|||||||||
| 01 | RP Head Unit High 3 | US | 1 | 07/2020 | 11/2023 | 65125B33F94 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 3 | US | 1 | 07/2020 | 12/2024 | 65125B3F825 | Shop at ECS Tuning | |||
| 01 | RP Head Unit High 3 | US | 1 | 07/2020 | 65125B48530 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Statutory emergency request and Rear Professional entertainment center and BMW Live dashboard Professional and Country control for Mexico 10360 |
S6AEA=No S6AFA=No S6FHA=No S6U3A=Yes S8LMA=No |
|||||||||
| 01 | RP Head Unit High 3 | ROW | 1 | 07/2020 | 11/2023 | 65125B33F82 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 3 | ROW | 1 | 07/2020 | 12/2024 | 65125B3F807 | Shop at ECS Tuning | |||
| 01 | RP Head Unit High 3 | ROW | 1 | 07/2020 | 65125B48518 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Teleservices and Statutory emergency request and Rear Professional entertainment center and Country control for Mexico 10360 |
L807A=No S6AEA=Yes S6AFA=Yes S6FHA=No S8LMA=No |
|||||||||
| 01 | RP Head Unit High 3 | ROW | 1 | 07/2020 | 11/2023 | 65125B33F83 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 3 | ROW | 1 | 07/2020 | 12/2024 | 65125B3F808 | Shop at ECS Tuning | |||
| 01 | RP Head Unit High 3 | ROW | 1 | 07/2020 | 65125B48519 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Teleservices and Statutory emergency request and Rear Professional entertainment center and Country control for Mexico 10360 |
L807A=No S6AEA=Yes S6AFA=No S6FHA=No S8LMA=No |
|||||||||
| 01 | RP Head Unit High 3 | ROW | 1 | 07/2020 | 11/2023 | 65125B33F83 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 3 | ROW | 1 | 07/2020 | 12/2024 | 65125B3F808 | Shop at ECS Tuning | |||
| 01 | RP Head Unit High 3 | ROW | 1 | 07/2020 | 65125B48519 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Teleservices and Statutory emergency request and Rear Professional entertainment center and Country control for Mexico 10360 |
L807A=No S6AEA=No S6AFA=Yes S6FHA=No S8LMA=No |
|||||||||
| 01 | RP Head Unit High 3 | ROW | 1 | 07/2020 | 11/2023 | 65125B33F83 | ENDED | Shop at ECS Tuning | ||
| 01 | RP Head Unit High 3 | ROW | 1 | 07/2020 | 12/2024 | 65125B3F808 | Shop at ECS Tuning | |||
| 01 | RP Head Unit High 3 | ROW | 1 | 07/2020 | 65125B48519 | Shop at ECS Tuning | ||||
| 02 | Oval-head screw with washer | DELTA PT4X20 | 1 | 07149185673 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
