CIC for BMW 6 Series E63 LCI 650i (2010)

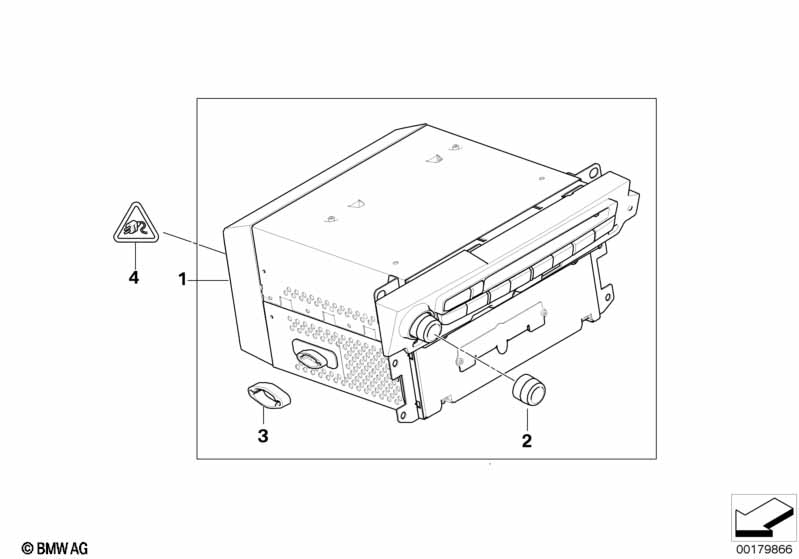

This CIC technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 LCI 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice! The system automatically requests the repair enable codes during the programming routine. As an alternative, it is possible to request the enable codes directly by selecting 'Sweeping Technology' in the 'FSC repair information request' menu at the ASAP Portal. A t t e n t i o n ! The defective used part must be forwarded through the exchange part return loop. It is essential to observe PARTS_051_09_14 product information bulletin! Attention! In the event that the head unit is stolen, it is necessary to consult with the insurance company to determine whether an exchange part may be installed and whether the associated flat rate deposit may be applied . If the insurance demands that a new part must be used, then the corresponding part number must be taken from the EPC . |
|||||||||
| For vehicles with TV function and On-board monitor with TV and Navigation system Professional and DAB tuner |
S601A=Yes S602A=No S609A=Yes S654A=No |
|||||||||
| 01 | RP Car Information Computer | ECE | 1 | 11/2008 | 65129272803 | Shop at ECS Tuning | ||||
| For vehicles with TV function and On-board monitor with TV and Navigation system Professional and DAB tuner |
S601A=Yes S602A=No S609A=No S654A=No |
|||||||||
| 01 | RP Car Information Computer | ECE | 1 | 11/2008 | 65129272803 | Shop at ECS Tuning | ||||
| For vehicles with TV function and On-board monitor with TV and Navigation system Professional and DAB tuner |
S601A=No S602A=Yes S609A=No S654A=No |
|||||||||
| 01 | RP Car Information Computer | ECE | 1 | 11/2008 | 65129272803 | Shop at ECS Tuning | ||||
| For vehicles with TV function and On-board monitor with TV and Navigation system Professional and DAB tuner |
S601A=No S602A=No S609A=Yes S654A=No |
|||||||||
| 01 | RP Car Information Computer | ECE | 1 | 11/2008 | 65129272803 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and TV function and On-board monitor with TV and Navigation system Professional |
L802A=Yes S601A=Yes S602A=No S609A=Yes |
|||||||||
| 01 | Car Infotainment Computer | KOREA | 1 | 11/2008 | 65129248391 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and TV function and On-board monitor with TV and Navigation system Professional |
L802A=Yes S601A=Yes S602A=No S609A=No |
|||||||||
| 01 | Car Infotainment Computer | KOREA | 1 | 11/2008 | 65129248391 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and TV function and On-board monitor with TV and Navigation system Professional |
L802A=Yes S601A=No S602A=Yes S609A=No |
|||||||||
| 01 | Car Infotainment Computer | KOREA | 1 | 11/2008 | 65129248391 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and TV function and On-board monitor with TV and Navigation system Professional |
L802A=Yes S601A=No S602A=No S609A=Yes |
|||||||||
| 01 | Car Infotainment Computer | KOREA | 1 | 11/2008 | 65129248391 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and TV function and On-board monitor with TV and Navigation system Professional |
L807A=Yes S601A=Yes S602A=No S609A=Yes |
|||||||||
| 01 | Exchange CIC | JAPAN | 1 | 11/2008 | 07/2016 | 65129244125 | ENDED | Shop at ECS Tuning | ||
| 01 | RP REMAN CIC | JAPAN | 1 | 11/2008 | 65129272806 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and TV function and On-board monitor with TV and Navigation system Professional |
L807A=Yes S601A=Yes S602A=No S609A=No |
|||||||||
| 01 | Exchange CIC | JAPAN | 1 | 11/2008 | 07/2016 | 65129244125 | ENDED | Shop at ECS Tuning | ||
| 01 | RP REMAN CIC | JAPAN | 1 | 11/2008 | 65129272806 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and TV function and On-board monitor with TV and Navigation system Professional |
L807A=Yes S601A=No S602A=Yes S609A=No |
|||||||||
| 01 | Exchange CIC | JAPAN | 1 | 11/2008 | 07/2016 | 65129244125 | ENDED | Shop at ECS Tuning | ||
| 01 | RP REMAN CIC | JAPAN | 1 | 11/2008 | 65129272806 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and TV function and On-board monitor with TV and Navigation system Professional |
L807A=Yes S601A=No S602A=No S609A=Yes |
|||||||||
| 01 | Exchange CIC | JAPAN | 1 | 11/2008 | 07/2016 | 65129244125 | ENDED | Shop at ECS Tuning | ||
| 01 | RP REMAN CIC | JAPAN | 1 | 11/2008 | 65129272806 | Shop at ECS Tuning | ||||
| For vehicles with TV function and On-board monitor with TV and Navigation system Professional and DAB tuner |
S601A=Yes S602A=No S609A=Yes S654A=Yes |
|||||||||
| 01 | RP REMAN, CIC / DAB | ECE | 1 | 11/2008 | 65129199609 | Shop at ECS Tuning | ||||
| For vehicles with TV function and On-board monitor with TV and Navigation system Professional and DAB tuner |
S601A=Yes S602A=No S609A=No S654A=Yes |
|||||||||
| 01 | RP REMAN, CIC / DAB | ECE | 1 | 11/2008 | 65129199609 | Shop at ECS Tuning | ||||
| For vehicles with TV function and On-board monitor with TV and Navigation system Professional and DAB tuner |
S601A=No S602A=Yes S609A=Yes S654A=Yes |
|||||||||
| 01 | RP REMAN, CIC / DAB | ECE | 1 | 11/2008 | 65129199609 | Shop at ECS Tuning | ||||
| For vehicles with TV function and On-board monitor with TV and Navigation system Professional and DAB tuner |
S601A=No S602A=Yes S609A=No S654A=Yes |
|||||||||
| 01 | RP REMAN, CIC / DAB | ECE | 1 | 11/2008 | 65129199609 | Shop at ECS Tuning | ||||
| For vehicles with TV function and On-board monitor with TV and Navigation system Professional and DAB tuner |
S601A=No S602A=No S609A=Yes S654A=Yes |
|||||||||
| 01 | RP REMAN, CIC / DAB | ECE | 1 | 11/2008 | 65129199609 | Shop at ECS Tuning | ||||
| For vehicles with National version China and TV function and On-board monitor with TV and Navigation system Professional and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Taiwan 04825 |
L8AAA=Yes S601A=Yes S602A=No S609A=Yes S8LHA=No S8LTA=No |
|||||||||
| 01 | Car Infotainment Computer | ASIEN | 1 | 11/2008 | 03/2011 | 65129258377 | Shop at ECS Tuning | |||
| For vehicles with National version China and TV function and On-board monitor with TV and Navigation system Professional and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Taiwan 04825 |
L8AAA=Yes S601A=Yes S602A=No S609A=No S8LHA=No S8LTA=No |
|||||||||
| 01 | Car Infotainment Computer | ASIEN | 1 | 11/2008 | 03/2011 | 65129258377 | Shop at ECS Tuning | |||
| For vehicles with National version China and TV function and On-board monitor with TV and Navigation system Professional and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Taiwan 04825 |
L8AAA=Yes S601A=No S602A=Yes S609A=No S8LHA=No S8LTA=No |
|||||||||
| 01 | Car Infotainment Computer | ASIEN | 1 | 11/2008 | 03/2011 | 65129258377 | Shop at ECS Tuning | |||
| For vehicles with National version China and TV function and On-board monitor with TV and Navigation system Professional and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Taiwan 04825 |
L8AAA=Yes S601A=No S602A=No S609A=Yes S8LHA=No S8LTA=No |
|||||||||
| 01 | Car Infotainment Computer | ASIEN | 1 | 11/2008 | 03/2011 | 65129258377 | Shop at ECS Tuning | |||
| For vehicles with National version China and TV function and On-board monitor with TV and Navigation system Professional and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Taiwan 04825 |
L8AAA=No S601A=Yes S602A=No S609A=Yes S8LHA=Yes S8LTA=No |
|||||||||
| 01 | Car Infotainment Computer | ASIEN | 1 | 11/2008 | 03/2011 | 65129258377 | Shop at ECS Tuning | |||
| For vehicles with National version China and TV function and On-board monitor with TV and Navigation system Professional and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Taiwan 04825 |
L8AAA=No S601A=Yes S602A=No S609A=Yes S8LHA=No S8LTA=Yes |
|||||||||
| 01 | Car Infotainment Computer | ASIEN | 1 | 11/2008 | 03/2011 | 65129258377 | Shop at ECS Tuning | |||
| For vehicles with National version China and TV function and On-board monitor with TV and Navigation system Professional and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Taiwan 04825 |
L8AAA=No S601A=Yes S602A=No S609A=No S8LHA=Yes S8LTA=No |
|||||||||
| 01 | Car Infotainment Computer | ASIEN | 1 | 11/2008 | 03/2011 | 65129258377 | Shop at ECS Tuning | |||
| For vehicles with National version China and TV function and On-board monitor with TV and Navigation system Professional and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Taiwan 04825 |
L8AAA=No S601A=Yes S602A=No S609A=No S8LHA=No S8LTA=Yes |
|||||||||
| 01 | Car Infotainment Computer | ASIEN | 1 | 11/2008 | 03/2011 | 65129258377 | Shop at ECS Tuning | |||
| For vehicles with National version China and TV function and On-board monitor with TV and Navigation system Professional and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Taiwan 04825 |
L8AAA=No S601A=No S602A=Yes S609A=No S8LHA=Yes S8LTA=No |
|||||||||
| 01 | Car Infotainment Computer | ASIEN | 1 | 11/2008 | 03/2011 | 65129258377 | Shop at ECS Tuning | |||
| For vehicles with National version China and TV function and On-board monitor with TV and Navigation system Professional and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Taiwan 04825 |
L8AAA=No S601A=No S602A=Yes S609A=No S8LHA=No S8LTA=Yes |
|||||||||
| 01 | Car Infotainment Computer | ASIEN | 1 | 11/2008 | 03/2011 | 65129258377 | Shop at ECS Tuning | |||
| For vehicles with National version China and TV function and On-board monitor with TV and Navigation system Professional and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Taiwan 04825 |
L8AAA=No S601A=No S602A=No S609A=Yes S8LHA=Yes S8LTA=No |
|||||||||
| 01 | Car Infotainment Computer | ASIEN | 1 | 11/2008 | 03/2011 | 65129258377 | Shop at ECS Tuning | |||
| For vehicles with National version China and TV function and On-board monitor with TV and Navigation system Professional and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Taiwan 04825 |
L8AAA=No S601A=No S602A=No S609A=Yes S8LHA=No S8LTA=Yes |
|||||||||
| 01 | Car Infotainment Computer | ASIEN | 1 | 11/2008 | 03/2011 | 65129258377 | Shop at ECS Tuning | |||
| 02 | Button | 1 | 65129119572 | $16.48 | Shop at ECS Tuning | |||||
| 03 | Alignment element | 2 | 65839165318 | Shop at ECS Tuning | ||||||
| 04 | Plug housing | 16 POL. | 1 | 61138384580 | $3.78 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 1 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 1 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Rep. kit for socket housing | 12 POL. | 1 | 61132471240 | Shop at ECS Tuning | |||||
| -- | Socket housing | 8 POL. | 1 | 61136905788 | $1.52 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | 1 | 61138364832 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket housing | 12 POL. | 1 | 61138384550 | $0.77 | Shop at ECS Tuning | ||||
| -- | Covering cap | 12 POL. | 1 | 61138387206 | $2.07 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
