Multifunctional display for BMW 2 Series U06 Active Tourer 220d (2024)

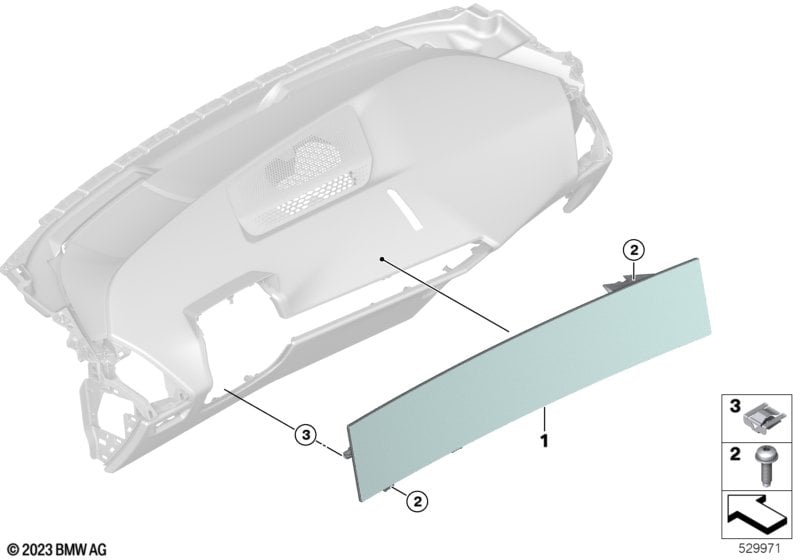

This Multifunctional display technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Driving assistant professional |
S5AUA=Yes |
|||||||||
| 01 | Multifunctional display | RHD 12,3 | 1 | 11/2024 | 65505A79107 | Shop at ECS Tuning | ||||
| 01 | Multifunctional display | RHD 12,3 | 1 | 65505B3DC63 | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional |
S5AUA=No |
|||||||||
| 01 | Multifunctional display | RHD 12,3 | 1 | 11/2024 | 65505A79111 | Shop at ECS Tuning | ||||
| 01 | Multifunctional display | RHD 12,3 | 1 | 65505B3DC67 | Shop at ECS Tuning | |||||
| 02 | Combi. fillister head self-tapping screw | 3 | 07149323312 | NoS | Shop at ECS Tuning | |||||
| 03 | Spring clip | 4 | 07149236757 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
