Receiver Audio Module for BMW 2 Series U06 Active Tourer 220d (2024)

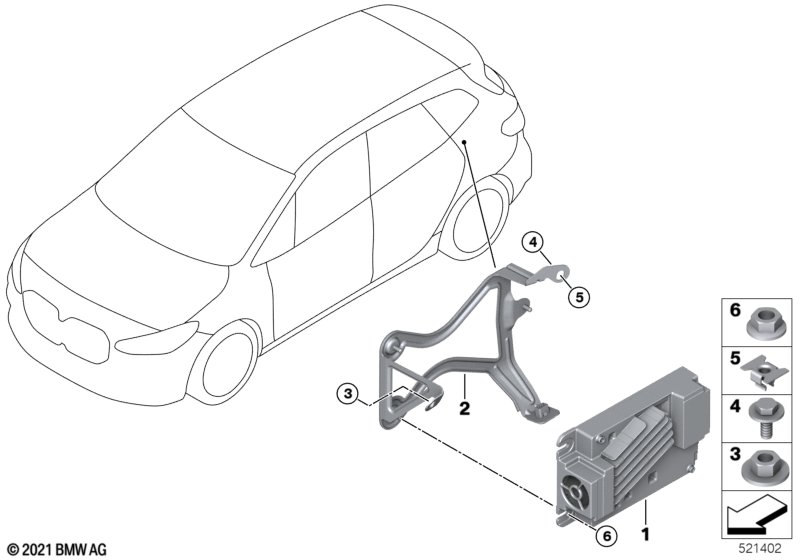

This Receiver Audio Module technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with DAB tuner and Hi-Fi System Harman Kardon |
S654A=Yes S674A=No |
|||||||||
| 01 | RP RAM | BASE DAB | 1 | 12/2024 | 65125A9BF79 | Shop at ECS Tuning | ||||
| 01 | RP RAM | BASE DAB | 1 | 65125B44D23 | Shop at ECS Tuning | |||||
| For vehicles with DAB tuner and Hi-Fi System Harman Kardon |
S654A=No S674A=Yes |
|||||||||
| 01 | RP RAM | MID HP R | 1 | 12/2024 | 65125A9BFA7 | Shop at ECS Tuning | ||||
| 01 | RP RAM | MID HP R | 1 | 65125B44D49 | Shop at ECS Tuning | |||||
| For vehicles with DAB tuner and Hi-Fi System Harman Kardon |
S654A=Yes S674A=Yes |
|||||||||
| 01 | RP RAM | MID DAB | 1 | 12/2024 | 65125A9BFA5 | Shop at ECS Tuning | ||||
| 01 | RP RAM | MID DAB | 1 | 65125B44D47 | Shop at ECS Tuning | |||||
| For vehicles with DAB tuner and Hi-Fi System Harman Kardon |
S654A=No S674A=No |
|||||||||
| 01 | RP RAM | BASE R | 1 | 12/2024 | 65125A9BF80 | Shop at ECS Tuning | ||||
| 01 | RP RAM | BASE R | 1 | 65125B44D24 | Shop at ECS Tuning | |||||
| 02 | Bracket RAM | 1 | 65159107236 | Shop at ECS Tuning | ||||||
| 03 | Hex nut with plate | M6 | 1 | 07147311066 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M6X16-U2-ZNS3 | 1 | 07119902913 | Shop at ECS Tuning | |||||
| 05 | Prestol-cage | M6 ZNS3 | 1 | 32411095443 | $1.48 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M5 | 3 | 07119905710 | $2.83 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series U06 Active Tourer 220d Receiver Audio Module?
- This technical diagram illustrates the Receiver Audio Module within the Audio, Navigation, Electronic Systems group for the 2 Series U06 Active Tourer 220d produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the RP RAM (Part #65125A9BF79).
- Which models use the hardware listed in this Receiver Audio Module?
- The hardware and components featured in the Receiver Audio Module are specific to the 2 Series U06 Active Tourer 220d produced during 2024. These technical specifications ensure that parts like the RP RAM (65125A9BF79) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Receiver Audio Module assembly?
- Each item in the Receiver Audio Module corresponds to the numbered list below the illustration. For the 2 Series U06 Active Tourer 220d, you can identify the RP RAM by locating its position on the schematic, which then links to the official BMW part number 65125A9BF79 for the Audio, Navigation, Electronic Systems section.
