Multifunctional display for BMW 3 Series G20 Sedan LCI 320dX (2025)

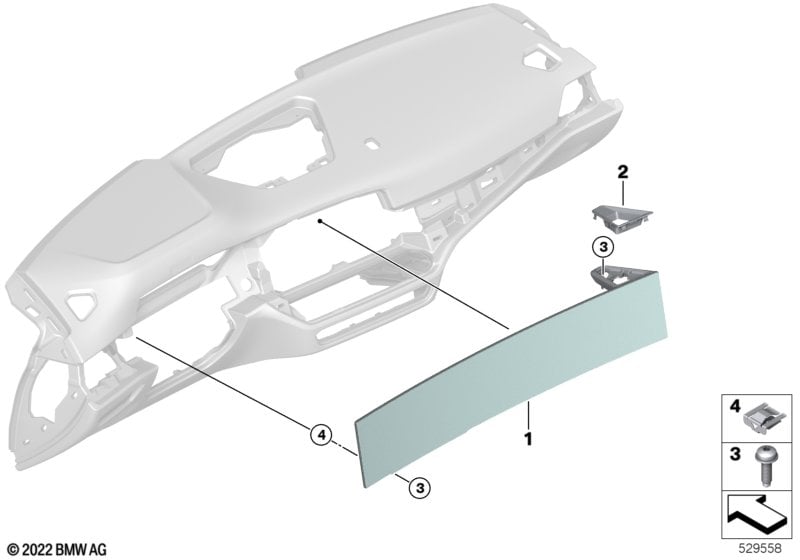

This Multifunctional display technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 320dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Check installation in vehicle! Order replacement for component installed in vehicle! For vehicles with Control D |
S8WMA=No |
||||||||
| For vehicles with Driving assistant professional |
S5AUA=Yes |
|||||||||
| 01 | Multifunctional display | 12,3 LHD | 1 | 07/2022 | 65505A93297 | Shop at ECS Tuning | ||||
| For vehicles with Driving assistant professional |
S5AUA=No |
|||||||||
| 01 | Multifunctional display | 12,3 LHD | 1 | 07/2022 | 65505A93289 | Shop at ECS Tuning | ||||
| 02 | Cover for display screen | HALTER LHD | 1 | 07/2022 | 65505A2F3A0 | Shop at ECS Tuning | ||||
| 03 | Fillister head screw | 3 | 07/2022 | 07147240308 | Shop at ECS Tuning | |||||
| 04 | Spring clip | 4 | 07149236757 | Shop at ECS Tuning | ||||||
