Single parts f rear helf loudspeaker for BMW 3 Series G20 Sedan LCI 330e (2024)

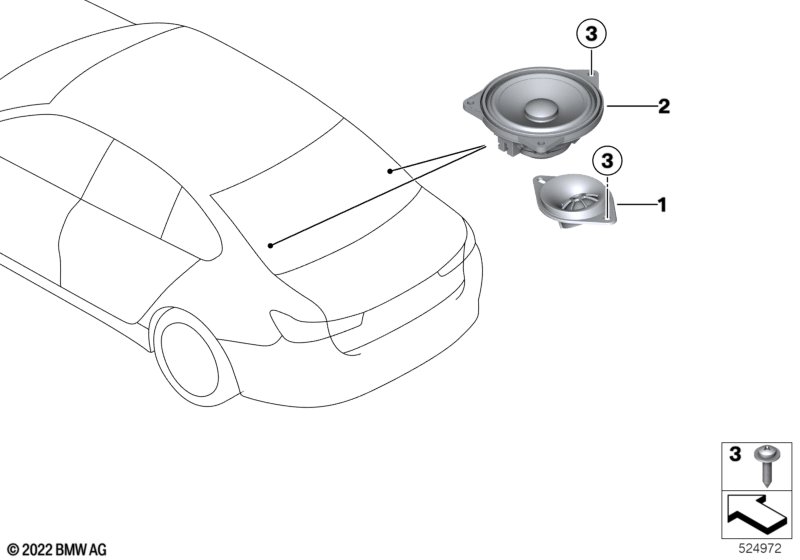

This Single parts f rear helf loudspeaker technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
||||||||
| 01 | Tweeter | TOP HIFI | 2 | 65135A29F46 | Shop at ECS Tuning | |||||
| 01 | Tweeter Top HiFi system | ALEV3 | 2 | 65132622859 | Shop at ECS Tuning | |||||
| 02 | Top-hifi MID-range loudspeaker | ALEV3 | 2 | 65132622468 | Shop at ECS Tuning | |||||
| 03 | Oval-head screw with washer | DELTA PT4X20 | 10 | 07149185673 | Shop at ECS Tuning | |||||
