Amplifier / bracket for BMW 3 Series G21 Touring LCI 320eX (2024)

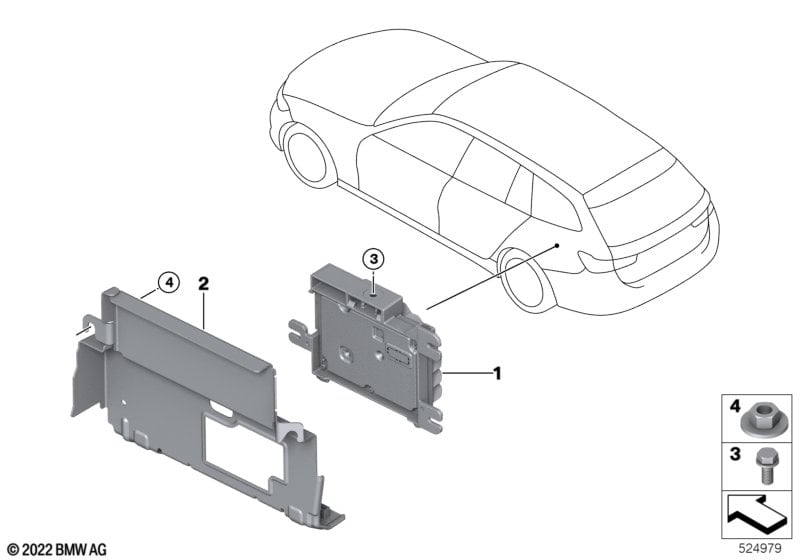

This Amplifier / bracket technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI 320eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Caution -> For vehicles with SA688 & SA6U3, an additional amplifier (booster) is installed. If no SA688 is installed, the RAM takes over the amplifier (booster) function. For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
||||||||
| 01 | Booster | ALEV3 R | 1 | 65125A5CA89 | Shop at ECS Tuning | |||||
| 02 | Holder Booster | 1 | 65159865514 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt | M5X 12MM | 1 | 07119905138 | Shop at ECS Tuning | |||||
| 04 | Hex nut | BM6-8-ZNNIV SI | 1 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G21 Touring LCI 320eX Amplifier / bracket?
- This technical diagram illustrates the Amplifier / bracket within the Audio, Navigation, Electronic Systems group for the 3 Series G21 Touring LCI 320eX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Booster (Part #65125A5CA89).
- Which models use the hardware listed in this Amplifier / bracket?
- The hardware and components featured in the Amplifier / bracket are specific to the 3 Series G21 Touring LCI 320eX produced during 2024. These technical specifications ensure that parts like the Booster (65125A5CA89) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Amplifier / bracket assembly?
- Each item in the Amplifier / bracket corresponds to the numbered list below the illustration. For the 3 Series G21 Touring LCI 320eX, you can identify the Booster by locating its position on the schematic, which then links to the official BMW part number 65125A5CA89 for the Audio, Navigation, Electronic Systems section.
