Components central bass for BMW 7 Series G70 740iX (2025)

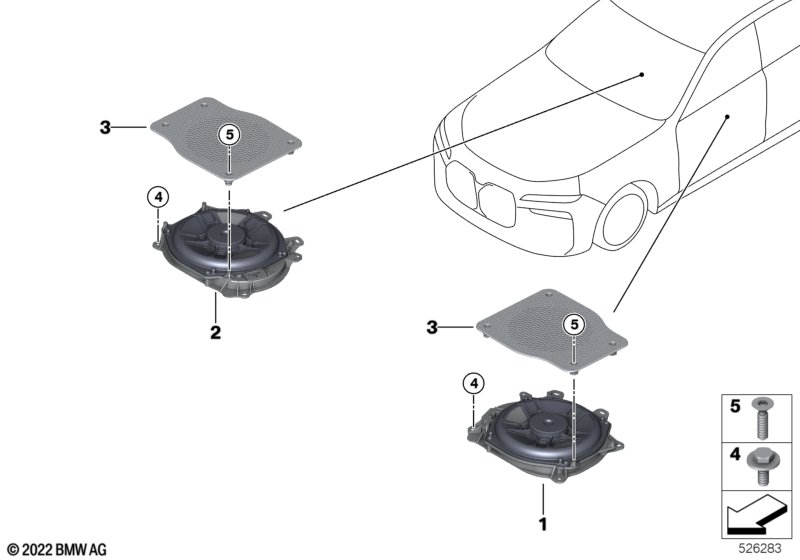

This Components central bass technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Bowers & Wilkins High End Sound System |
S6F1A=Yes |
|||||||||
| 01 | Central bass left | ALEV 4 | 1 | 65135A2FE41 | Shop at ECS Tuning | |||||
| For vehicles with Bowers & Wilkins High End Sound System |
S6F1A=No |
|||||||||
| 01 | Central bass left | ALEV3 | 1 | 65135A2FE37 | Shop at ECS Tuning | |||||
| For vehicles with Bowers & Wilkins High End Sound System |
S6F1A=Yes |
|||||||||
| 02 | Central bass right | ALEV 4 | 1 | 65135A2FE42 | Shop at ECS Tuning | |||||
| For vehicles with Bowers & Wilkins High End Sound System |
S6F1A=No |
|||||||||
| 02 | Central bass right | ALEV3 | 1 | 65135A2FE38 | Shop at ECS Tuning | |||||
| 03 | Central woofer trim | 2 | 65139875733 | Shop at ECS Tuning | ||||||
| 04 | Hex bolt with washer | M6X16-U2-ZNS3 | 4 | 07119902913 | Shop at ECS Tuning | |||||
| 05 | Countersunk head screw | 8 | 51337068211 | $0.19 | Shop at ECS Tuning | |||||
