Single parts, antenna, Comfort access for BMW 7 Series G70 740i (2025)

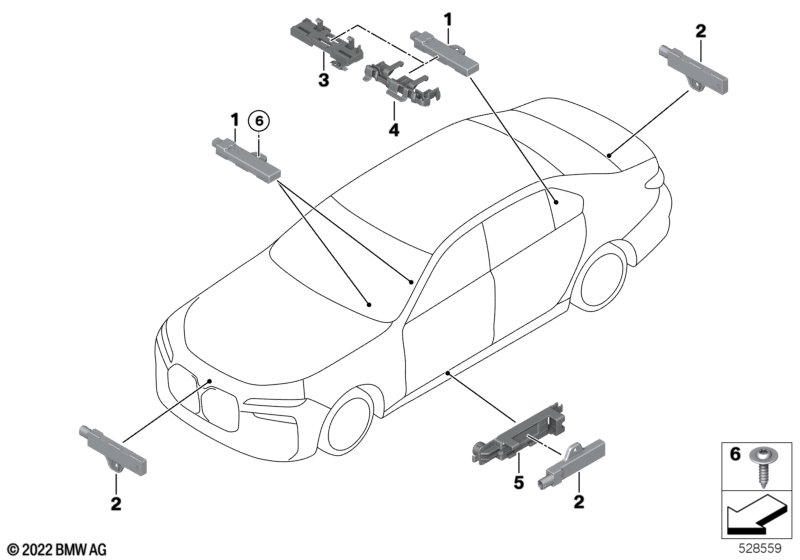

This Single parts, antenna, Comfort access technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Interior antenna convenience access | 3 | 65205A1D0B1 | Shop at ECS Tuning | ||||||
| 02 | Outside antenna, comfort access | 4 | 65205A1D0B2 | Shop at ECS Tuning | ||||||
| 03 | Bracket for Comfort Access antenna | 1 | 65209265295 | Shop at ECS Tuning | ||||||
| 04 | Bracket for antenna, luggage compartment | 1 | 61359331172 | Shop at ECS Tuning | ||||||
| 05 | Holder antenna door sill | 2 | 65205A1D604 | Shop at ECS Tuning | ||||||
| 06 | Fillister head screw | DELTA PT4X16 | 2 | 07149197038 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 740i Single parts, antenna, Comfort access?
- This technical diagram illustrates the Single parts, antenna, Comfort access within the Audio, Navigation, Electronic Systems group for the 7 Series G70 740i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Interior antenna convenience access (Part #65205A1D0B1).
- Which models use the hardware listed in this Single parts, antenna, Comfort access?
- The hardware and components featured in the Single parts, antenna, Comfort access are specific to the 7 Series G70 740i produced during 2025. These technical specifications ensure that parts like the Interior antenna convenience access (65205A1D0B1) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts, antenna, Comfort access assembly?
- Each item in the Single parts, antenna, Comfort access corresponds to the numbered list below the illustration. For the 7 Series G70 740i, you can identify the Interior antenna convenience access by locating its position on the schematic, which then links to the official BMW part number 65205A1D0B1 for the Audio, Navigation, Electronic Systems section.
