Receiver Audio Module for BMW 7 Series G70 M760eX (2024)

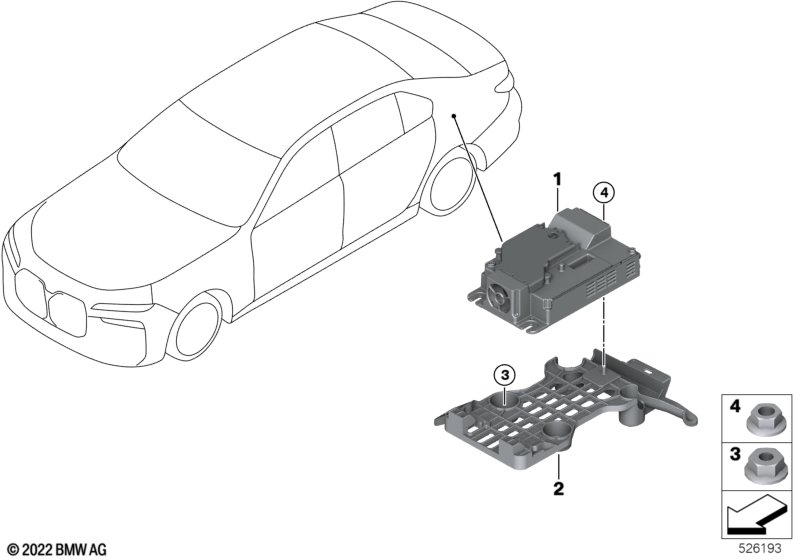

This Receiver Audio Module technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 M760eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with DAB tuner and Bowers & Wilkins High End Sound System |
S654A=No S6F1A=No |
|||||||||
| 01 | RP RAM | HIGH ECO R | 1 | 12/2024 | 65125A9BF92 | Shop at ECS Tuning | ||||
| 01 | RP RAM | HIGH ECO R | 1 | 65125B44D34 | Shop at ECS Tuning | |||||
| For vehicles with DAB tuner and Bowers & Wilkins High End Sound System |
S654A=Yes S6F1A=No |
|||||||||
| 01 | RP RAM | DAB HIGH ECO | 1 | 11/2024 | 65125A9BF91 | Shop at ECS Tuning | ||||
| 01 | RP RAM | DAB HIGH ECO | 1 | 65125B44D33 | Shop at ECS Tuning | |||||
| For vehicles with DAB tuner and Bowers & Wilkins High End Sound System |
S654A=No S6F1A=Yes |
|||||||||
| 01 | RP RAM | HIGH R | 1 | 12/2024 | 65125A9BF95 | Shop at ECS Tuning | ||||
| 01 | RP RAM | HIGH R | 1 | 65125B44D37 | Shop at ECS Tuning | |||||
| For vehicles with DAB tuner and Bowers & Wilkins High End Sound System |
S654A=Yes S6F1A=Yes |
|||||||||
| 01 | RP RAM | DAB HIGH | 1 | 11/2024 | 65125A9BF88 | Shop at ECS Tuning | ||||
| 01 | RP RAM | DAB HIGH | 1 | 65125B44D30 | Shop at ECS Tuning | |||||
| 02 | Bracket RAM | 1 | 65155A893C1 | NoS | Shop at ECS Tuning | |||||
| 03 | Hex nut with plate | M6-8-ZNNIV SI | 4 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M5 | 1 | 07119905710 | $2.83 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
