Single parts f front door top-hifi syst. for BMW 5 Series G60 Sedan 520d (2025)

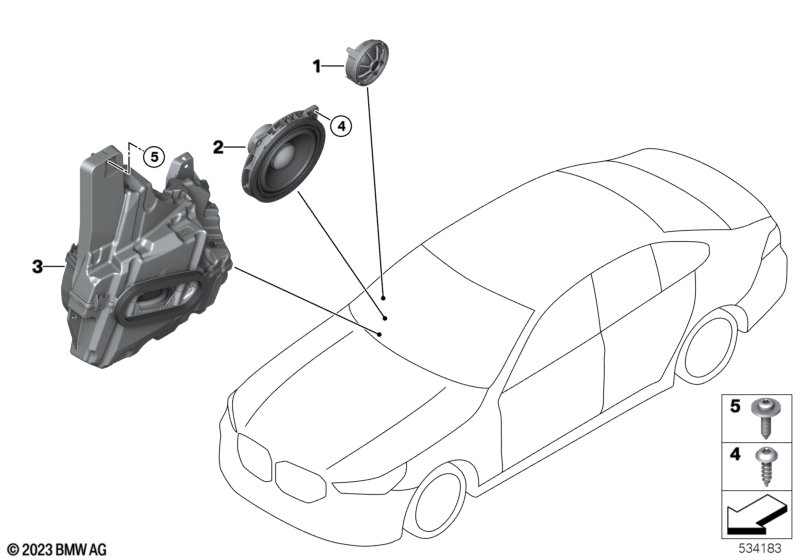

This Single parts f front door top-hifi syst. technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Bowers & Wilkins Surround Sound System |
S6F4A=Yes |
|||||||||
| 01 | Tweeter | ALEV 3 | 2 | 65135A07EA6 | Shop at ECS Tuning | |||||
| 02 | Mid-range speaker | ALEV 3 | 2 | 65135A0F467 | Shop at ECS Tuning | |||||
| 03 | Bass speaker compound door left front | ALEV3 | 1 | 65135A594D7 | NoS | Shop at ECS Tuning | ||||
| 03 | Bass speaker compound door right front | ALEV3 | 1 | 65135A594D8 | NoS | Shop at ECS Tuning | ||||
| 04 | Fillister head screw | TS 5X16 | 6 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
| 05 | Screw | V-TS5X20 ZNS3 | 12 | 51119908446 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
