Single parts f rear helf loudspeaker for BMW 5 Series G60 Sedan 540dX (2025)

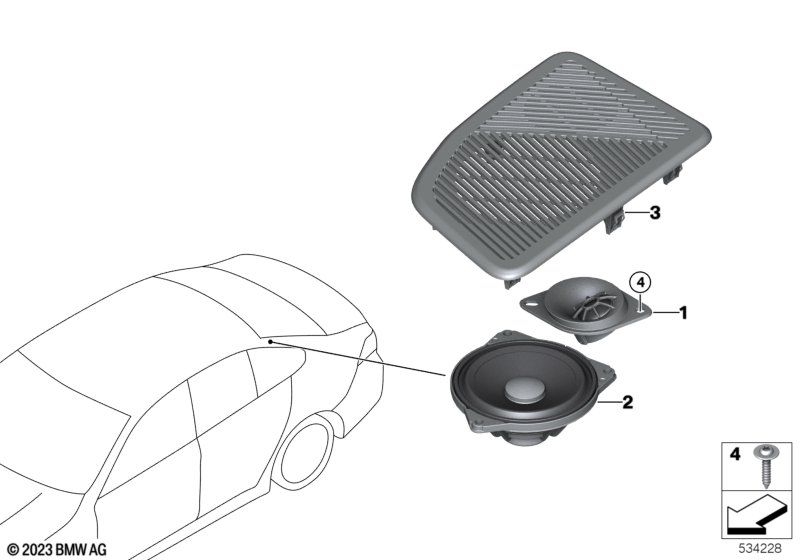

This Single parts f rear helf loudspeaker technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 540dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Bowers & Wilkins Surround Sound System |
S6F4A=Yes |
|||||||||
| 01 | Tweeter | ALEV3 | 2 | 65135A3DA48 | NoS | Shop at ECS Tuning | ||||
| 02 | Mid-range speaker | ALEV3 | 2 | 65135A0F466 | Shop at ECS Tuning | |||||
| For vehicles with Bowers & Wilkins Surround Sound System and Leather Merino black/Atlas gray or Leather Merino copper-brown/atlas-gray or Leather Merino silverstone II/atlas-gray |
S6F4A=Yes VCJL=Yes VCJM=Yes VCJN=Yes |
|||||||||
| 03 | Speaker trim left | ATLASGREY | 1 | 51465A59F45 | NoS | Shop at ECS Tuning | ||||
| 03 | Speaker trim right | ATLASGREY | 1 | 51465A59F46 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Bowers & Wilkins Surround Sound System and Veganza perf./stepped smoke-white or Veganza perf./stepped burgundy or Veganza perf./stepped espresso-brown or Veganza perf./stepped black or Alcant./Veganza comb. black or VEGANZA PERFORATED BLACK or Leather "Merino"/schwarz |
S6F4A=Yes KSFU=Yes KSJU=Yes KSJX=Yes KSSW=Yes KTSW=Yes KUSW=Yes LKSW=Yes |
|||||||||
| 03 | Speaker trim left | BLACK | 1 | 51465A38ED1 | NoS | Shop at ECS Tuning | ||||
| 03 | Speaker trim right | BLACK | 1 | 51465A38ED2 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Bowers & Wilkins Surround Sound System |
S6F4A=Yes |
|||||||||
| 04 | Oval-head screw with washer | DELTA PT4X20 | 10 | 07149185673 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
