Separate components for antenna system for BMW 5 Series G60 Sedan 540dX (2025)

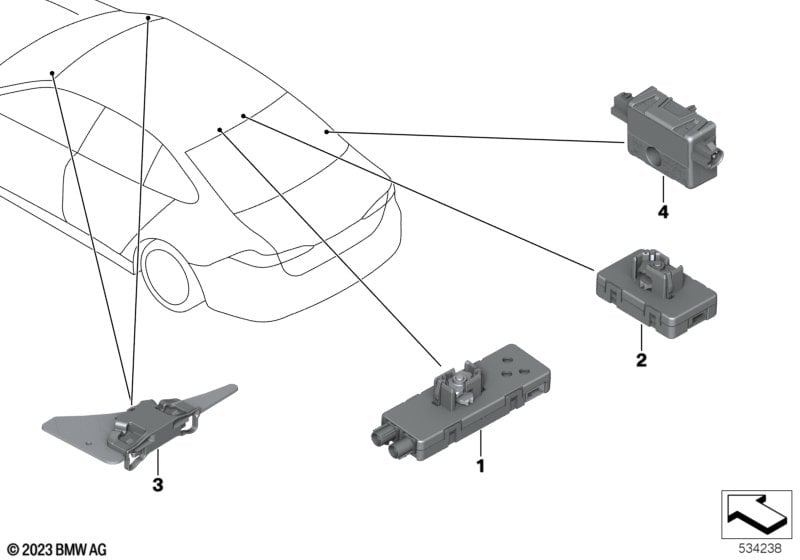

This Separate components for antenna system technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 540dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with DAB tuner Installed on left |
S654A=No |
|||||||||
| 01 | Antenna amplifier | AM/FM | 1 | 65205A5F0A2 | Shop at ECS Tuning | |||||
| For vehicles with DAB tuner Installed on right |
S654A=No |
|||||||||
| 01 | Antenna amplifier | FM | 1 | 65205A5F0A6 | Shop at ECS Tuning | |||||
| For vehicles with DAB tuner Installed on left |
S654A=Yes |
|||||||||
| 01 | Antenna amplifier | AM/FM/DAB | 1 | 65205A5F0A5 | Shop at ECS Tuning | |||||
| For vehicles with DAB tuner Installed on right |
S654A=Yes |
|||||||||
| 01 | Antenna amplifier FM/DAB | FM/DAB | 1 | 65205A5F0A7 | Shop at ECS Tuning | |||||
| 02 | Suppression filter | 1 | 65205A40D98 | Shop at ECS Tuning | ||||||
| For vehicles with Teleservices and Statutory emergency request and Personal eSIM |
S6AEA=Yes S6AFA=Yes S6PAA=Yes |
|||||||||
| 03 | Cell phone antenna left | 1 | 65208705919 | Shop at ECS Tuning | ||||||
| 03 | Cell phone antenna right | 1 | 65208705920 | Shop at ECS Tuning | ||||||
| For vehicles with Teleservices and Statutory emergency request and Personal eSIM |
S6AEA=Yes S6AFA=No S6PAA=Yes |
|||||||||
| 03 | Cell phone antenna left | 1 | 65208705919 | Shop at ECS Tuning | ||||||
| 03 | Cell phone antenna right | 1 | 65208705920 | Shop at ECS Tuning | ||||||
| For vehicles with Teleservices and Statutory emergency request and Personal eSIM |
S6AEA=No S6AFA=Yes S6PAA=Yes |
|||||||||
| 03 | Cell phone antenna left | 1 | 65208705919 | Shop at ECS Tuning | ||||||
| 03 | Cell phone antenna right | 1 | 65208705920 | Shop at ECS Tuning | ||||||
| 04 | Trap circuit | 1 | 65209442274 | Shop at ECS Tuning | ||||||
