Multifunctional display for BMW 5 Series G60 Sedan 520dX (2025)

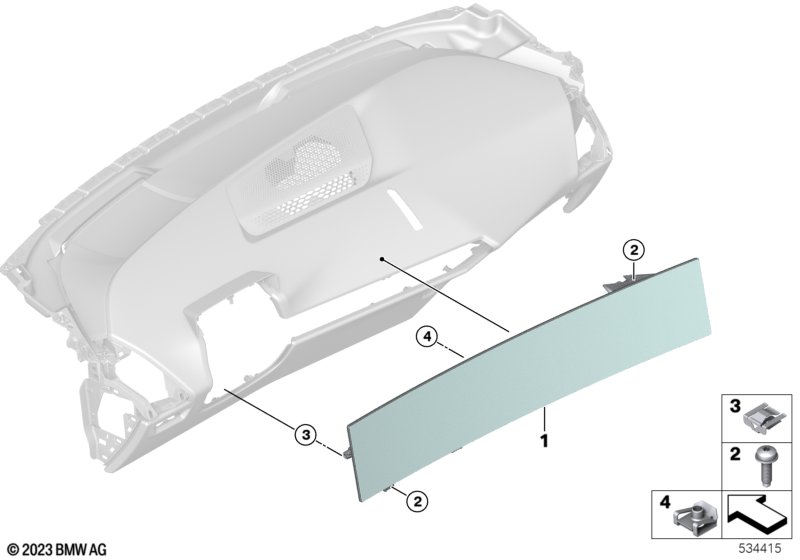

This Multifunctional display technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Highway assistant |
S5AXA=Yes |
|||||||||
| 01 | Multifunctional display | LL | 1 | 65505A93277 | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional and Highway assistant |
S5AUA=Yes S5AXA=No |
|||||||||
| 01 | Multifunctional display | LL | 1 | 65505A93283 | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional and Highway assistant |
S5AUA=No S5AXA=No |
|||||||||
| 01 | Multifunctional display | LL | 1 | 65505A93269 | Shop at ECS Tuning | |||||
| 02 | Fillister head screw | 5 | 07147240308 | Shop at ECS Tuning | ||||||
| 03 | Spring clip | 4 | 07149236757 | Shop at ECS Tuning | ||||||
| 04 | C-clip nut, self-locking | M5 | 1 | 46638532314 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Sedan 520dX Multifunctional display?
- This technical diagram illustrates the Multifunctional display within the Audio, Navigation, Electronic Systems group for the 5 Series G60 Sedan 520dX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Multifunctional display (Part #65505A93277).
- Which models use the hardware listed in this Multifunctional display?
- The hardware and components featured in the Multifunctional display are specific to the 5 Series G60 Sedan 520dX produced during 2025. These technical specifications ensure that parts like the Multifunctional display (65505A93277) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Multifunctional display assembly?
- Each item in the Multifunctional display corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 520dX, you can identify the Multifunctional display by locating its position on the schematic, which then links to the official BMW part number 65505A93277 for the Audio, Navigation, Electronic Systems section.
