Electric parts airbag for BMW 4 Series G23 Convertible 430i (2024)

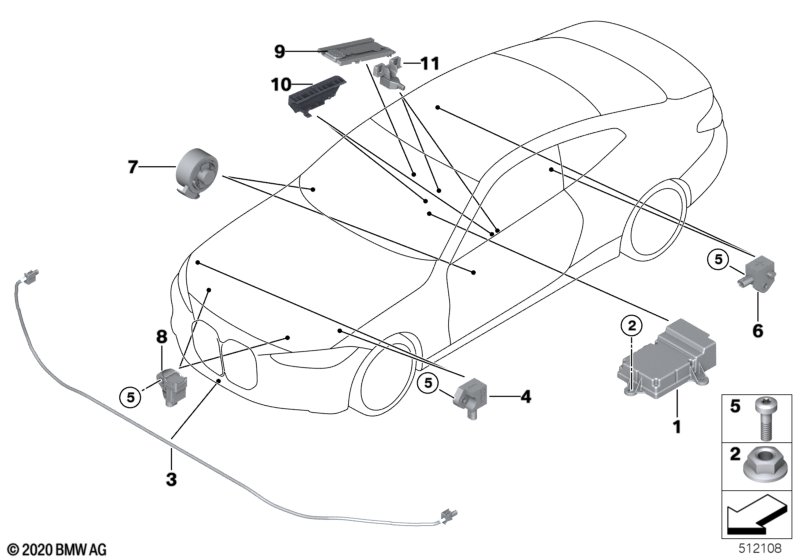

This Electric parts airbag technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.

Electric parts airbag
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Adaptive M suspension
S2VFA=Yes
01 Airbag control unit 28ZK C3 1 03/2024 65775A656B0 ENDED Shop at ECS Tuning
01 Airbag control unit 28ZK C3 1 65775B448F9 Shop at ECS Tuning
For vehicles with
Adaptive M suspension
S2VFA=No
01 Airbag control unit 28ZK C3 1 03/2024 65775A656B9 Shop at ECS Tuning
01 Airbag control unit 28ZK C3 1 65775B44905 Shop at ECS Tuning
02 Hex nut M6-8-SC-ZNNIV S 3 34506859776 Shop at ECS Tuning
For vehicles with
Active pedestrian protection
S8TFA=Yes
03 Sensor for pedestrian protection PTS 1 65765A0BB39 Shop at ECS Tuning
04 Sensor, front 1 65779314520 Shop at ECS Tuning
For vehicles with
Active pedestrian protection
Centrally between radiator grilles
S8TFA=Yes
05 Countersunk screw M6X20-8.8-ZNNIV 1 07119907517 Shop at ECS Tuning
06 Accelerating sensor 2 65779341546 Shop at ECS Tuning
07 Sensor door 2 65776834911 Shop at ECS Tuning
For vehicles with
National version Korea
L802A=Yes
08 Sensor, front 2 65779349777 Shop at ECS Tuning
For vehicles with
M Carbon bucket seats
S48CA=No
09 Sensor mat f co-driver's seat identif. 1 65776977932 Shop at ECS Tuning
For vehicles with
Extra package, EU-specific
and
Seat adjuster, electric, with memory
and
Seat with active ventilation
S230A=Yes

S459A=No

S4FHA=No
10 Magnet for for seat position L/R 2 65779367457 Shop at ECS Tuning
For vehicles with
National version Korea
and
National version japan
and
Extra package, EU-specific
and
Seat adjuster, electric, with memory
and
Seat with active ventilation
L802A=Yes

L807A=Yes

S230A=No

S459A=No

S4FHA=No
10 Magnet for for seat position L/R 2 65779367457 Shop at ECS Tuning
For vehicles with
National version Korea
and
National version japan
and
Extra package, EU-specific
and
Seat adjuster, electric, with memory
and
Seat with active ventilation
L802A=Yes

L807A=No

S230A=No

S459A=No

S4FHA=No
10 Magnet for for seat position L/R 2 65779367457 Shop at ECS Tuning
For vehicles with
National version Korea
and
National version japan
and
Extra package, EU-specific
and
Seat adjuster, electric, with memory
and
Seat with active ventilation
L802A=No

L807A=Yes

S230A=No

S459A=No

S4FHA=No
10 Magnet for for seat position L/R 2 65779367457 Shop at ECS Tuning
For vehicles with
Extra package, EU-specific
and
Seat adjuster, electric, with memory
and
Seat with active ventilation
S230A=Yes

S459A=No

S4FHA=No
11 Sensor seat L/R 2 65779367455 Shop at ECS Tuning
For vehicles with
National version Korea
and
National version japan
and
Extra package, EU-specific
and
Seat adjuster, electric, with memory
and
Seat with active ventilation
L802A=Yes

L807A=Yes

S230A=No

S459A=No

S4FHA=No
11 Sensor seat L/R 2 65779367455 Shop at ECS Tuning
For vehicles with
National version Korea
and
National version japan
and
Extra package, EU-specific
and
Seat adjuster, electric, with memory
and
Seat with active ventilation
L802A=Yes

L807A=No

S230A=No

S459A=No

S4FHA=No
11 Sensor seat L/R 2 65779367455 Shop at ECS Tuning
For vehicles with
National version Korea
and
National version japan
and
Extra package, EU-specific
and
Seat adjuster, electric, with memory
and
Seat with active ventilation
L802A=No

L807A=Yes

S230A=No

S459A=No

S4FHA=No
11 Sensor seat L/R 2 65779367455 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
