Electric parts airbag for BMW 5 Series G30 520i (2020)

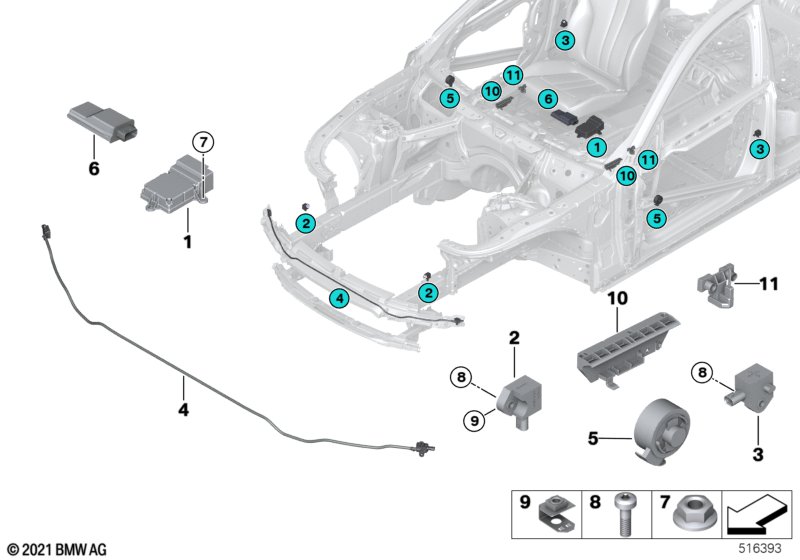

This Electric parts airbag technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Adaptive suspension and Adaptive M suspension |
S223A=Yes S2VFA=Yes |
|||||||||
| 01 | Control unit airbag | HIGH, 28 ZK | 1 | 07/2019 | 07/2020 | 65779890599 | Shop at ECS Tuning | |||
| For vehicles with Adaptive suspension and Integral active steering |
S223A=No S2VHA=Yes |
|||||||||
| 01 | Control unit airbag | AFS, 28 ZK | 1 | 07/2019 | 07/2020 | 65779890598 | Shop at ECS Tuning | |||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" and Integral active steering and Country-specific equipment Russia 10323 |
S223A=No S2VAA=Yes S2VHA=No S8LRA=Yes |
|||||||||
| 01 | Control unit airbag | ROLL, 28 ZK | 1 | 07/2019 | 07/2020 | 65779890597 | Shop at ECS Tuning | |||
| For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" and Adaptive M suspension and Integral active steering and 2-axle air suspension and Country-specific equipment Russia 10323 |
S223A=No S2VAA=No S2VFA=No S2VHA=No S2VRA=No S8LRA=No |
|||||||||
| 01 | Airbag control unit | 1 | 07/2019 | 07/2020 | 65779890596 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Equipment-specific control |
L8AAA=Yes S8R2A=Yes |
|||||||||
| 02 | Sensor, front | 2 | 65779314520 | Shop at ECS Tuning | ||||||
| 03 | Accelerating sensor | 2 | 65779341546 | Shop at ECS Tuning | ||||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 04 | Sensor for pedestrian protection PTS | 1 | 65775A2A060 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Impact absorber, top | -M- | 1 | 51118062846 | Shop at ECS Tuning | |||||
| 05 | Sensor door | 2 | 65779279391 | Shop at ECS Tuning | ||||||
| 07 | Hex nut | M6-8-SC-ZNNIV S | 3 | 34506859776 | Shop at ECS Tuning | |||||
| 08 | Countersunk screw | M6X20-8.8-ZNNIV | 6 | 07119907517 | Shop at ECS Tuning | |||||
| 09 | Clip for sheet metal nut | M6 | 2 | 07149216177 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and Extra package, EU-specific and Comfort seat with memory and Seat adjuster, electric, with memory and M multifunction seat |
L802A=Yes S230A=Yes S456A=No S459A=No S4MAA=No |
|||||||||
| 10 | Magnet for for seat position | LINKS | 1 | 65776993861 | Shop at ECS Tuning | |||||
| 11 | Sensor seat | 1 | 65779343380 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
