Components, antenna amplifier, diversity for BMW 4 Series G23 Convertible LCI 430i (2025)

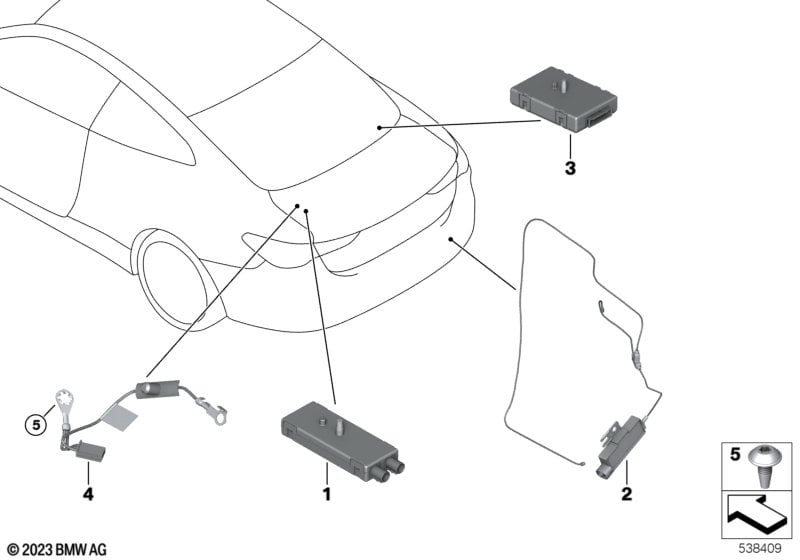

This Components, antenna amplifier, diversity technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with DAB tuner |
S654A=No |
|||||||||
| 01 | Antenna amplifier | FM/AM | 2 | 65205A73DB3 | Shop at ECS Tuning | |||||
| For vehicles with DAB tuner |
S654A=Yes |
|||||||||
| 01 | Antenna amplifier | FM/AM/DAB | 2 | 65205A73DB4 | Shop at ECS Tuning | |||||
| 03 | Suppression filter | 2 | 65206835178 | Shop at ECS Tuning | ||||||
| 04 | Antenna adapter | 2 | 65209434273 | Shop at ECS Tuning | ||||||
| 05 | Sheet metal screw | ISA M5X12 | 4 | 07149158177 | $0.25 | Shop at ECS Tuning | ||||
