Amplifier / bracket for BMW 4 Series G23 Convertible LCI 430i (2025)

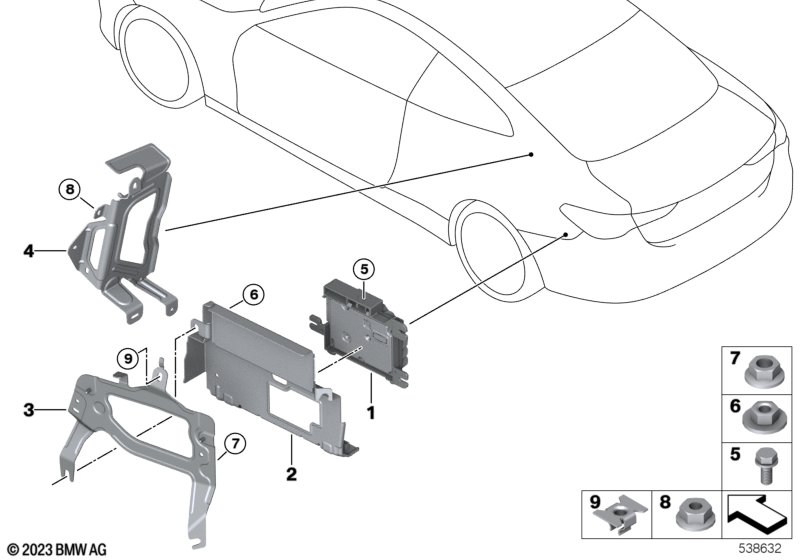

This Amplifier / bracket technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Caution -> For vehicles with SA688 & SA6U3, an additional amplifier (booster) is installed. If no SA688 is installed, the RAM takes over the amplifier (booster) function. |
|||||||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 01 | Booster | ALEV3 R | 1 | 65125A5CA89 | Shop at ECS Tuning | |||||
| 02 | Holder Booster | 1 | 65159865514 | Shop at ECS Tuning | ||||||
| 03 | Bracket RAM/ICAM | 1 | 65158717255 | Shop at ECS Tuning | ||||||
| 04 | Holder for Telematics control unit | 1 | 65158718642 | Shop at ECS Tuning | ||||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 05 | Hex bolt | M5X 12MM | 1 | 07119905138 | Shop at ECS Tuning | |||||
| 06 | Hex nut with plate | M6 | 2 | 07147311066 | Shop at ECS Tuning | |||||
| 07 | Hex nut | M5 | 3 | 07119905710 | $2.83 | Shop at ECS Tuning | ||||
| ATM at ATM holder | ||||||||||
| 08 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| ATM holder on left connection | ||||||||||
| 08 | Hex nut with plate | M6-8-ZNNIV SI | 1 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| ATM holder on rollover protection system | ||||||||||
| 08 | Hex nut with plate | M6-8-ZNNIV SI | 2 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Prestol-cage | M6 ZNS3 | 1 | 32411095443 | $1.48 | Shop at ECS Tuning | ||||
