Single parts antenna for BMW 5 Series G61 Touring 520d (2025)

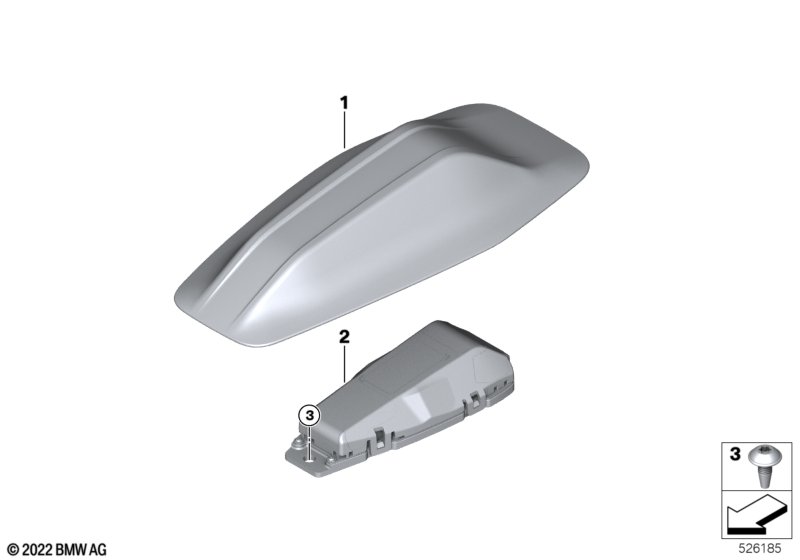

This Single parts antenna technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Empty housing for roof antenna, primed | 1 | 65209107484 | Shop at ECS Tuning | ||||||
| For vehicles with Highway assistant and Teleservices and Statutory emergency request |
S5AXA=Yes S6AEA=Yes S6AFA=Yes |
|||||||||
| 02 | Roof antenna | ROW/HAF | 1 | 65208705913 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant and Teleservices and Statutory emergency request |
S5AXA=Yes S6AEA=Yes S6AFA=No |
|||||||||
| 02 | Roof antenna | ROW/HAF | 1 | 65208705913 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant and Teleservices and Statutory emergency request |
S5AXA=Yes S6AEA=No S6AFA=Yes |
|||||||||
| 02 | Roof antenna | ROW/HAF | 1 | 65208705913 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant and Teleservices and Statutory emergency request and Personal eSIM |
S5AXA=No S6AEA=Yes S6AFA=Yes S6PAA=Yes |
|||||||||
| 02 | Roof antenna | ROW/HIGH | 1 | 65205A09D89 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant and Teleservices and Statutory emergency request and Personal eSIM |
S5AXA=No S6AEA=Yes S6AFA=No S6PAA=Yes |
|||||||||
| 02 | Roof antenna | ROW/HIGH | 1 | 65205A09D89 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant and Teleservices and Statutory emergency request and Personal eSIM |
S5AXA=No S6AEA=No S6AFA=Yes S6PAA=Yes |
|||||||||
| 02 | Roof antenna | ROW/HIGH | 1 | 65205A09D89 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant and Teleservices and Statutory emergency request and Personal eSIM |
S5AXA=No S6AEA=No S6AFA=No S6PAA=No |
|||||||||
| 02 | Roof antenna | GNSS | 1 | 03/2025 | 65208705915 | Shop at ECS Tuning | ||||
| For vehicles with Highway assistant and Teleservices and Statutory emergency request and Personal eSIM |
S5AXA=No S6AEA=Yes S6AFA=Yes S6PAA=No |
|||||||||
| 02 | Roof antenna | ROW | 1 | 65209825130 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant and Teleservices and Statutory emergency request and Personal eSIM |
S5AXA=No S6AEA=Yes S6AFA=No S6PAA=No |
|||||||||
| 02 | Roof antenna | ROW | 1 | 65209825130 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant and Teleservices and Statutory emergency request and Personal eSIM |
S5AXA=No S6AEA=No S6AFA=Yes S6PAA=No |
|||||||||
| 02 | Roof antenna | ROW | 1 | 65209825130 | Shop at ECS Tuning | |||||
| 03 | Torx-bolt with washer | M6X12 | 1 | 07146985055 | $0.38 | Shop at ECS Tuning | ||||
| Reworking solution for stripped screw. | ||||||||||
| 03 | Fillister head screw | M5X16 | 1 | 07146972074 | Shop at ECS Tuning | |||||
| Standard | ||||||||||
