Rmfd.head unit High 5 for BMW 5 Series G61 Touring 520d (2023)

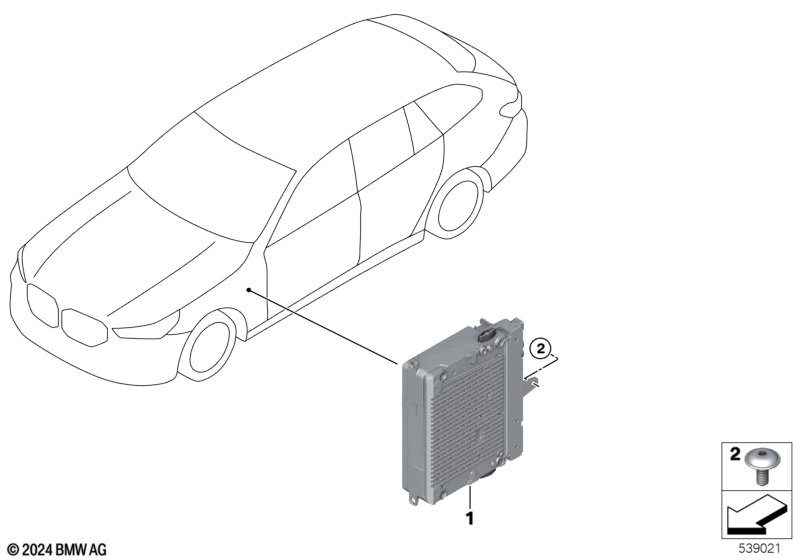

This Rmfd.head unit High 5 technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=No S6AFA=No |
|||||||||
| 01 | RP Head Unit High 5 | ROW | 1 | 03/2024 | 65125B42802 | Shop at ECS Tuning | ||||
| 01 | Rmfd.head unit High 5 | ROW | 1 | 05/2024 | 65125B4F800 | Shop at ECS Tuning | ||||
| 01 | Rmfd.head unit High 5 | ROW | 1 | 12/2024 | 65125B591D1 | Shop at ECS Tuning | ||||
| 01 | Rmfd.head unit High 5 | ROW | 1 | 03/2025 | 65125B70386 | Shop at ECS Tuning | ||||
| 01 | Rmfd.head unit High 5 | ROW | 1 | 65125B75D18 | Shop at ECS Tuning | |||||
| For vehicles with Teleservices and Statutory emergency request and BMW Live dashboard Professional |
S6AEA=Yes S6AFA=Yes S6U3A=No |
|||||||||
| 01 | RP Head Unit High 5 | ROW | 1 | 03/2024 | 65125B436B2 | ENDED | Shop at ECS Tuning | |||
| 01 | Rmfd.head unit High 5 | ROW | 1 | 12/2024 | 65125B4F815 | Shop at ECS Tuning | ||||
| 01 | Rmfd.head unit High 5 | ROW | 1 | 03/2025 | 65125B703A0 | Shop at ECS Tuning | ||||
| 01 | Rmfd.head unit High 5 | ROW | 1 | 65125B75D32 | Shop at ECS Tuning | |||||
| For vehicles with Teleservices and Statutory emergency request and BMW Live dashboard Professional |
S6AEA=Yes S6AFA=Yes S6U3A=Yes |
|||||||||
| 01 | RP Head Unit High 5 | ROW | 1 | 03/2024 | 65125B42811 | ENDED | Shop at ECS Tuning | |||
| 01 | Rmfd.head unit High 5 | ROW | 1 | 06/2024 | 65125B4F809 | ENDED | Shop at ECS Tuning | |||
| 01 | Rmfd.head unit High 5 | ROW | 1 | 12/2024 | 65125B591E0 | Shop at ECS Tuning | ||||
| 01 | Rmfd.head unit High 5 | ROW | 1 | 03/2025 | 65125B70395 | Shop at ECS Tuning | ||||
| 01 | Rmfd.head unit High 5 | ROW | 1 | 65125B75D27 | Shop at ECS Tuning | |||||
| 02 | Fillister head screw | 1 | 07147305240 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G61 Touring 520d Rmfd.head unit High 5?
- This technical diagram illustrates the Rmfd.head unit High 5 within the Audio, Navigation, Electronic Systems group for the 5 Series G61 Touring 520d produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the RP Head Unit High 5 (Part #65125B42802).
- Which models use the hardware listed in this Rmfd.head unit High 5?
- The hardware and components featured in the Rmfd.head unit High 5 are specific to the 5 Series G61 Touring 520d produced during 2023. These technical specifications ensure that parts like the RP Head Unit High 5 (65125B42802) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rmfd.head unit High 5 assembly?
- Each item in the Rmfd.head unit High 5 corresponds to the numbered list below the illustration. For the 5 Series G61 Touring 520d, you can identify the RP Head Unit High 5 by locating its position on the schematic, which then links to the official BMW part number 65125B42802 for the Audio, Navigation, Electronic Systems section.
