Electric parts airbag for BMW MINI Cabrio F57 Cooper (2019)

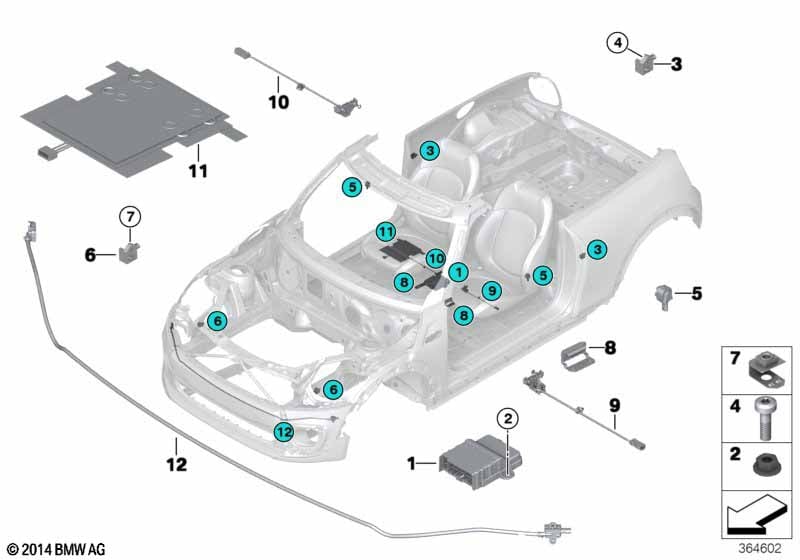

This Electric parts airbag technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit airbag | 1 | 65775A41CA3 | Shop at ECS Tuning | ||||||
| 02 | Hex nut | M6-8-SC-ZNNIV S | 3 | 34506859776 | Shop at ECS Tuning | |||||
| 03 | Sensor, B-pillar | 2 | 65779196100 | Shop at ECS Tuning | ||||||
| 04 | Countersunk screw | M6X20-8.8-ZNNIV | 2 | 07119907517 | Shop at ECS Tuning | |||||
| 05 | Sensor door | 2 | 65779475697 | Shop at ECS Tuning | ||||||
| 06 | Accelerating sensor | 2 | 65779196047 | Shop at ECS Tuning | ||||||
| 07 | Clip for sheet metal nut | M6 | 2 | 07149216177 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Seat adjuster, electric, with memory |
S230A=Yes S459A=Yes |
|||||||||
| 08 | Magnet for for seat position | 2 | 65779311510 | Shop at ECS Tuning | ||||||
| For vehicles with Extra package, EU-specific and Seat adjuster, electric, with memory |
S230A=Yes S459A=No |
|||||||||
| 08 | Magnet for for seat position | 2 | 65779311510 | Shop at ECS Tuning | ||||||
| For vehicles with Extra package, EU-specific and Seat adjuster, electric, with memory |
S230A=No S459A=No |
|||||||||
| 08 | Magnet for for seat position | 2 | 65779311510 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=No |
|||||||||
| 09 | Sensor, seat, left | 1 | 65776993869 | Shop at ECS Tuning | ||||||
| 10 | Sensor, seat, right | 1 | 65776993870 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and Country version, India and Extra package, EU-specific |
L802A=Yes L8LAA=Yes S230A=Yes |
|||||||||
| 11 | Sensor mat f co-driver's seat identif. | 1 | 65779284594 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and Country version, India and Extra package, EU-specific |
L802A=Yes L8LAA=Yes S230A=No |
|||||||||
| 11 | Sensor mat f co-driver's seat identif. | 1 | 65779284594 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and Country version, India and Extra package, EU-specific |
L802A=Yes L8LAA=No S230A=Yes |
|||||||||
| 11 | Sensor mat f co-driver's seat identif. | 1 | 65779284594 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and Country version, India and Extra package, EU-specific |
L802A=Yes L8LAA=No S230A=No |
|||||||||
| 11 | Sensor mat f co-driver's seat identif. | 1 | 65779284594 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and Country version, India and Extra package, EU-specific |
L802A=No L8LAA=Yes S230A=Yes |
|||||||||
| 11 | Sensor mat f co-driver's seat identif. | 1 | 65779284594 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and Country version, India and Extra package, EU-specific |
L802A=No L8LAA=Yes S230A=No |
|||||||||
| 11 | Sensor mat f co-driver's seat identif. | 1 | 65779284594 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and Country version, India and Extra package, EU-specific |
L802A=No L8LAA=No S230A=Yes |
|||||||||
| 11 | Sensor mat f co-driver's seat identif. | 1 | 65779284594 | Shop at ECS Tuning | ||||||
