Single parts f front door loudspeaker for BMW 2 Series F74 Gran Coupé 218 (2025)

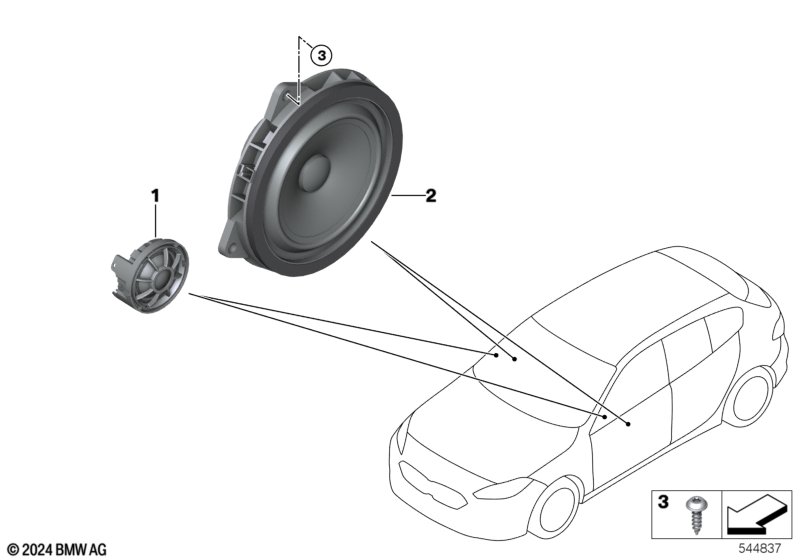

This Single parts f front door loudspeaker technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 218. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Hi-Fi System Harman Kardon |
S674A=Yes |
|||||||||
| 01 | Tweeter | ALEV 3 | 2 | 65135B5DB29 | NoS | Shop at ECS Tuning | ||||
| 02 | Mid-range speaker | ALEV2 | 2 | 65135A06FC5 | Shop at ECS Tuning | |||||
| For vehicles with Hi-Fi System Harman Kardon |
S674A=No |
|||||||||
| 02 | Mid-range speaker | ALEV 1 | 2 | 65139442520 | Shop at ECS Tuning | |||||
| 03 | Fillister head screw | TS 5X16 | 6 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
